OUR PRODUCTS

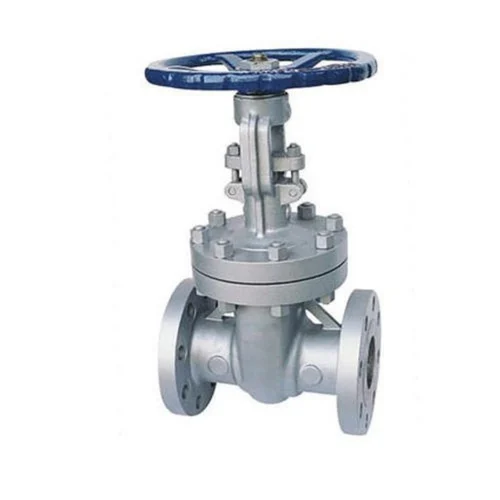

GATE VALVE F/E – 150# & 300#
LIV-GTV-WCB-C2-002
LIV-GTV-WCB-C2-002
LEHRY MAKE INVESTMENT CASTING CAST STEEL GATE VALVE - ASA 150 CLASS, OUTSIDE SCREW &YOKE TYPE, BOLTED BONNET, MOC-Body / Bonnet : ASTM A 216 Gr WCB, TRIM-13 Cr / 18 Cr 8 Ni, MFG STD: API 600, INSP &TEST STD : API 598, Operated : Hand Wheel, Ends : Flanged to ANSI B 16.1 FF 150#, Hyd-Test Pressure : B.T.P : 30 Bar, S.T.P : 21 Bar
LEHRY Gate Valve for Water, Oil & Chemical Application
- Manufacturing Std.: API 600 / BS 1414 / MSS-SP80
- Face to Face : ANSI B61.61
- End Connection: Flanged Ends to ANSI B16.5 RF 150# / 300#
- Inspection & Testing Std.: API 598
Technical Details :

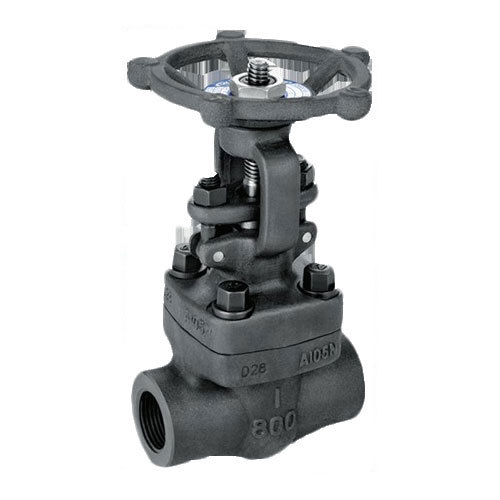

FORGED STEEL GATE VALVE
LIV-GTV-FCS-C5-001
FORGED STEEL GATE VALVE
LEHRY FORGED STEEL GATE VALVE - CL-800 - Item : FCS Gate Valve, MOC : Body & Bonnet : ASTM A 105, Bolted : ASTM A 193 Gr. B7, Stem : ASTM A 182 Gr. F6a, Seat Ring : ASTM A 276 Type SS 410, Wedge / Plug : ASTM A 217 Gr. CA15, Yoke Nut : ASTM A 276 Type SS
LEHRY FCS Gate Valve Screwed End / Socket weld End in Bolt Bonnet OS&Y Type Rising Stem, Renewable Seat & Disc
FORGED STEEL GATE VALVE
LIV-GTV-WCB-CF8-004

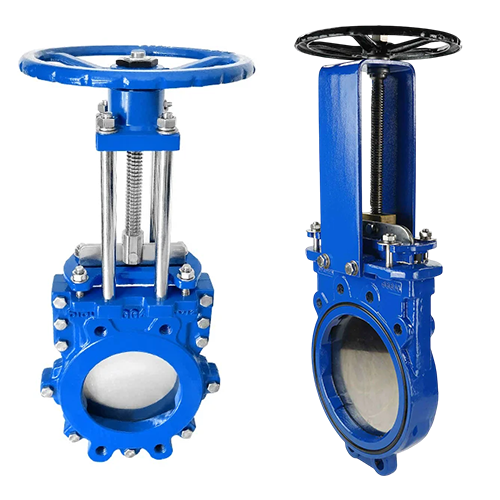

KNIFE EDGE GATE VALVE
LEHRY MAKE KNIFE EDGE GATE VALVE, MOC- Body- ASTM A216 Gr.WCB , Gate: ASTM A 351 Gr.CF8, SEAT: Metal, Stem : SS410, INSP &TETS STD: MSS SP-81, Ends : Lugged to ANSI B 16.5 RF(150#),Spring : SS316, Pressure Rating : Pn 10.
Lehry Make Knife Edge Gate Valve design of the body and seat assures nonclogging shut off on suspended solids in industries such as:
- Sharp heavy-duty knife edge at the bottom of gate cuts through solid sediments and ensures reliable shut-off
- Gate offered with surface coatings based on customer demand - Hardfacing, Nitriding, Chrome-plating
- Replaceable seats - Easy maintenance at site. Longer service life.
- Low operating torque - Facilitates use of a smaller-size actuators. Lower Initial Investment
