OUR PRODUCTS
The Controller 7000 (C7000) introduces a new generation of cyber defence with enhanced hardware, that uses industry-leading security infrastructure to generate, process and store cryptographic keys and certificates. The C7000 is an IP based controller that can manage all localized access control, intruder alarms, perimeter security, business automation and logic needs for an organization. Able to operate independently from the Command Centre server, the C7000 ensures predefined responses to monitored events, site safety, and continuity. The C7000 features a highly scalable system design, able to scale from single door systems to global systems with up to 10,000 controllers.

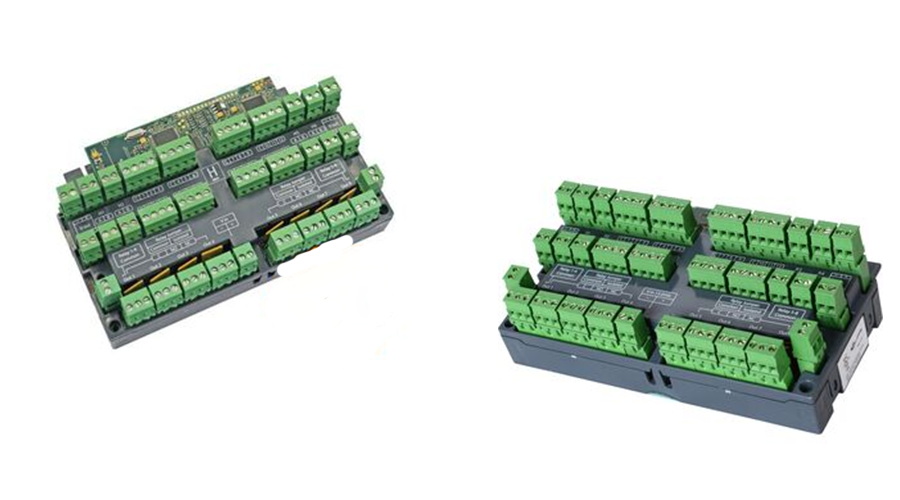

- 8H Module provides 8 HBUS ports, 24 balanced inputs and 8 relay outputs
- 4H Module provides 4 HBUS ports, 12 balanced inputs and 4 relay outputs.
See All Products
DownloadR Modules

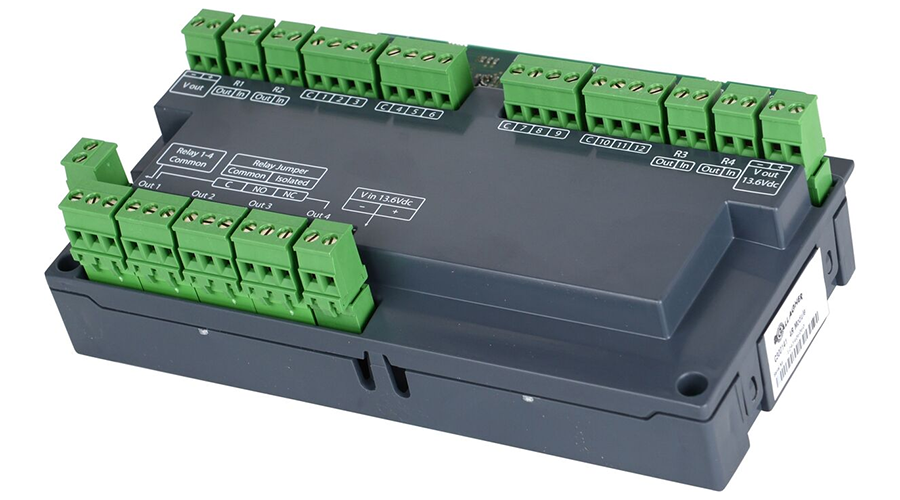

- 4R Reader module that clips into the Controller 6000 with direct connections for:
- 8R Reader module that clips into the controller 6000 with direct connections for:
Up to 4 Gallagher Cardax-IV connected readers, or Up to 2 Wiegand connected readers 12 inputs, 4 relays
Up to 8 Gallagher Cardax-IV connected readers, or Up to 4 Wiegand connected readers 24 inputs, 8 relays
See All Products
DownloadHBUS I/O Devices
Gallagher HBUS I/O Devices provide flexible, cost effective, secure input and output expansion options, and shared cabling with other HBUS devices. The HBUS communications protcol is based on the RS485 standard and allows each HBUS I/O Device to communicate with the Gallagher C6000 Controller over a distance of up to 500m (1640ft) at a speed of 1Mb/s. The HBUS Wiegand Door module also allows for connection of Wiegand devices, while providing secure HBUS communications to the Controller 6000. HBUS I/O Device software is automatically available with Controller 6000 software upgrades; no operator intervention is required.
- 8 In 2 Out Door Module 4 In 2 Out Door Module, Wiegand 8 In Board The Gallagher HBUS 8 In 2 Out Door Module extends the existing connectively of the Gallagher Controller 6000 via the HBUS communications protocol.
- 4 In 2 Out Door Module, Wiegand The Gallagher HBUS 4 In 2 Out Door Module - Wiegand extends the existing connectivity of the Gallagher Controller 6000 via the HBUS communications protocol. The module provides connection for:
- 8 In Board The Gallagher HBUS 8 In Board extends the existing connectivity of the Gallagher Controller 6000 via the HBUS communications protocol. The board provides connection for: 8 Inputs
- 8 In 4 Out Board The Gallagher HBUS 8 In 4 Out Board extends the existing connectivity of the Gallagher Controller 6000 via the HBUS communications protocol. The board provides connection for: 8 Inputs 4 Outputs SKU: C300684

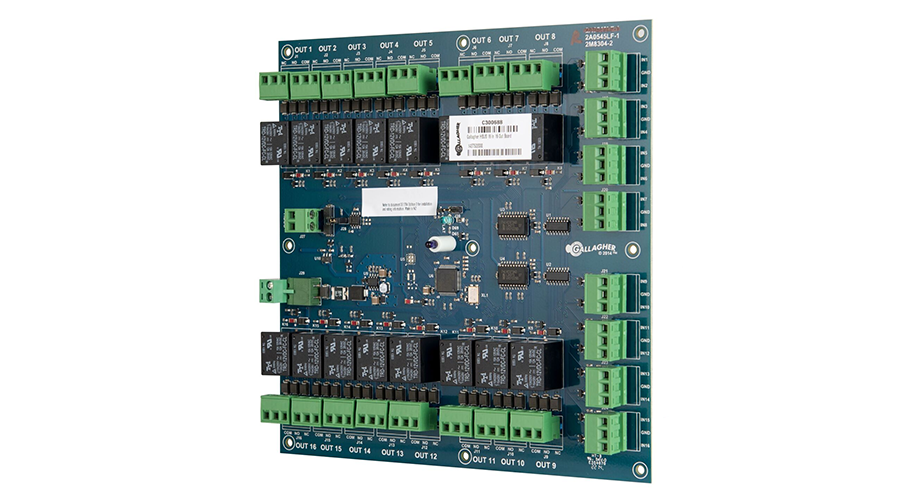

- 16 In 16 Out Board The Gallagher HBUS 16 In 16 Out Board extends the existing connectivity of the Gallagher Controller 6000 via the HBUS communications protcol. The board provides connection for: 16 Inputs 16 Outputs A centrally located tamper detector provides front and rear optical tamper dection when installed in a Gallagher Cabinet. SKU: C300688
This module provides connection for:
Up to four T Series Readers or two T20 Terminals (up to four T20 Terminals when these are powered independently) 8 inputs
2 outputs
SKU: C300660
• 2 Wiegand Readers
• 4 Inputs
• 2 Outputs
SKU: C300665
See All Products

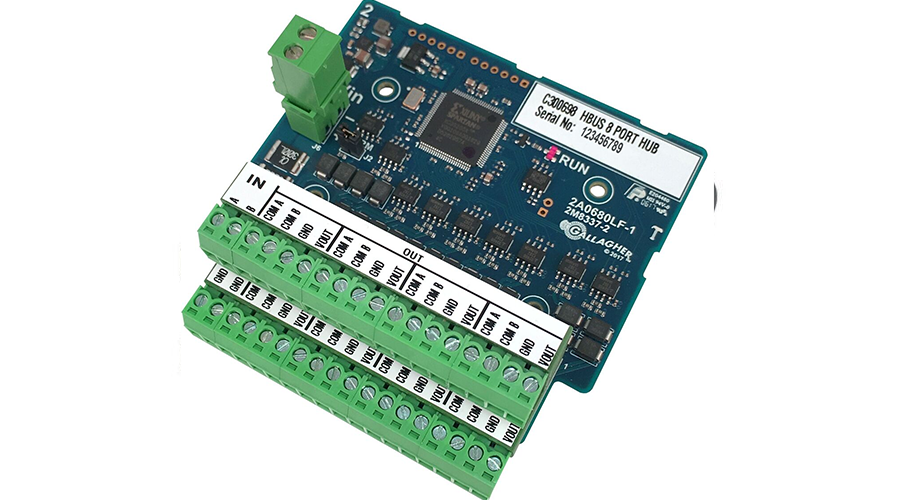

DownloadHBUS 8 Port Hub
Consolidation of data from up to 8 downstream HBUS RS-485 data wires into one upstream run.
Supports multiple HBUS devices on all 8 downstream RS-485 runs, and additional HBUS devices further upstream from the hub.
SKU: C300698
- GBUS Universal Reader Interface Gallagher GBUS device with on-board connections for:
- 8 input Expansion Interface Gallagher GBUS I/O Expansion Interface device providing 8 additional inputs. Housing: The Gallagher 8-Input Expansion PCB is 1/4 of a footprint. SKU: C200680
- PSTN Dialer Additional device that attaches on-board the Controller 6000 and 3000 to support PSTN dial up for: Remote alarms monitoring by an alarm monitoring station using the Contact ID format. Can be used in conjunction with the Command Centre IP Alarms feature to provide redundant failover communication to alarm monitoring stations. SKU: C200620
2 Gallagher readers or 1 Wiegand reader
8 inputs
2 outputs
Housing: The Gallagher GBUS Universal Reader Interface is enclosed in a plastic casing to enable installation in a door cavity, flush box, or cabinet. The PCB is 1/4 of a footprint, See section 6 – Cabinets for cabinet options.
SKU: C200660
