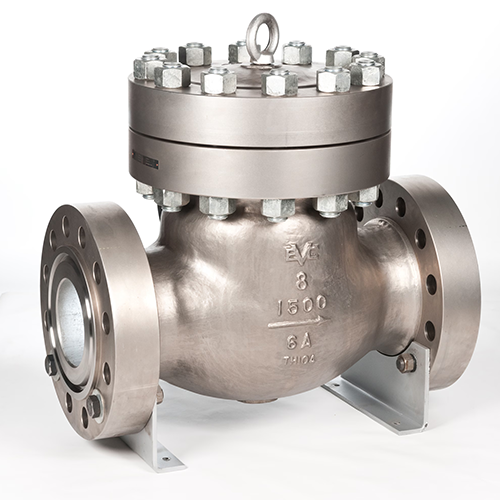

SWING CHECK VALVE F/E – 150# & 300#
LIV-NRV-WCB-C2-007
LIV-NRV-WCB-C2-007
LEHRY MAKE INVESTMENT CASTING CAST CARBON STEEL SWING CHECK VALVE - ASA 150 CLASS, ITEM: Non-Return Valve, TYPE: SWING TYPE BOLTED COVER, MOC: BODY / COVER: ASTM A 216 Gr. WCB, TRIM: 13 Cr / 18 Cr 8 Ni, Mfg Std : BS 1868, INSP & TEST STD : BS 6755, End : Flanged TO ANSI B 16.5 RF (150#), HYD-TEST PRESS: Body : 30Kg/Cmsq, Seat : 21 Kg/Cmsq.
LEHRY Swing Check Valve for Water, Oil, Gas & Chemical Application
- Manufacturing Std. : API 603 / BS 1868
- Face to Face : ANSI B16.10
- End Connection : Flanged Ends to ANSI B16.5 RF 150# / 300#
- Inspection & Testing Std. : API 598
Technical Details :

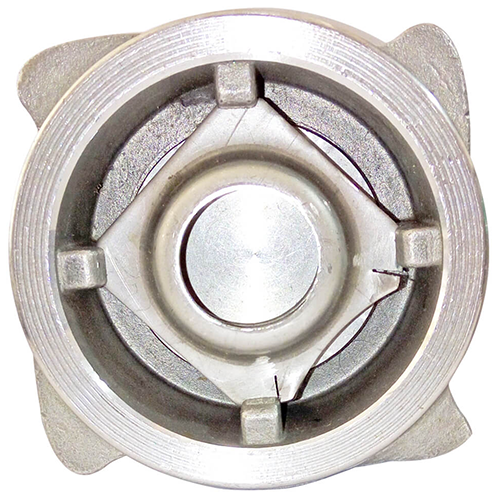

NON SLAM CHECK VALVE
LIV-NRV-CF8-MTM-040
LIV-NRV-CF8-MTM-040
LEHRY MAKE STAINLESS STEEL NON-SLAM CHECK Valves METAL TO METAL SEATED - PN.40, Body: ATM A351 Gr. CF8 , DISC: CF8, Spring : Stainless Steel, Seat : Metal to Metal, Spring Retainer : AISI 304, Ends : Wafer Type, PRESS.RATING: Body: 60 Kg/Cmsq, SEAT: 40 kg/Cmsq.
LEHRY offers disc check valve (wafer type) especially for chemical, Food processing, Pharmaceuticals, Pulp and Paper, Textiles, Power generation, Refrigeration & Air Conditioning etc. The valves are used in Oil lines, Processing line, Hot and cold water systems, steam and condensates, Gas lines etc
- Disc Check Valve is an advanced design which gives full flow and occupies very less space than other type of Non Return Valve. This also available with IBR Certificate in Form I!! C.
- Disc Check Valves are simple to fit between two pipe flanges.
- Spring loaded disc to prevent reverse flow in pipe lines.
- Available in 15mm to 100mm sizes.
