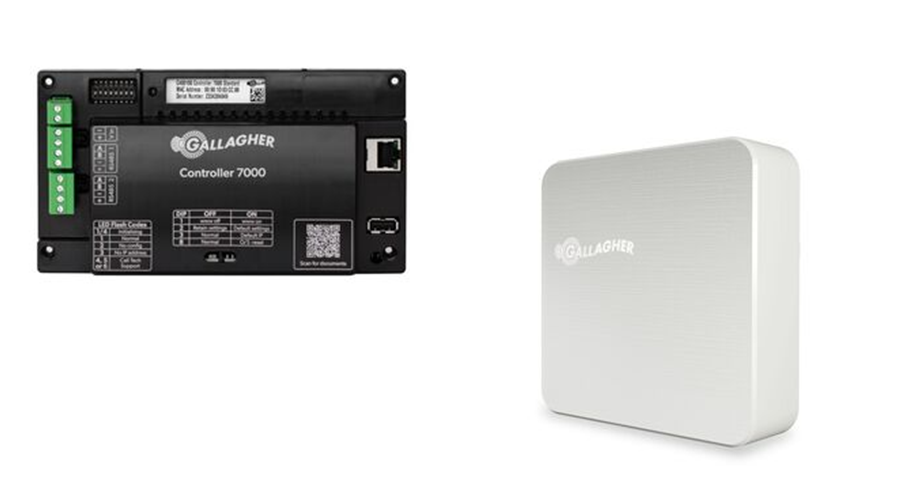

The Controller 7000 (C7000) introduces a new generation of cyber defence with enhanced hardware, that uses industry-leading security infrastructure to generate, process and store cryptographic keys and certificates. The C7000 is an IP based controller that can manage all localized access control, intruder alarms, perimeter security, business automation and logic needs for an organization. Able to operate independently from the Command Centre server, the C7000 ensures predefined responses to monitored events, site safety, and continuity. The C7000 features a highly scalable system design, able to scale from single door systems to global systems with up to 10,000 controllers.
- IP based 10/100 Ethernet connectivity
- Access control support for up to 10 wired doors, with multiple readers configurable per door
- Intruder alarms monitoring and transmission to external monitoring stations
- Serverless enforcement of business policy, ensuring staff operate in a safe and secure environment - even if connection to the server is lost.
- High speed RS-485 connectivity and software updates to field devices
- Programmable controller-based logic that operates independently of the server
- Industry leading authentication and encryption between the C7000 and all Gallagher elements of the system
- Support for elevator access control
- Support for integrated perimeter security
- Support for integration directly with building management systems
- Support for multiple wiring topologies, allowing easy connectivity of existing field devices without re-wiring
- Native programming interface for integration between the controller and 3rd party systems, independent of Command Centre server connectivity
- Multiple cabinetry and powering options dependent on site requirements
- Peer-to-peer inter-controller monitoring
- Compatible with Command Centre v9.0 or later
See All Products
DownloadController 7000 Single Door

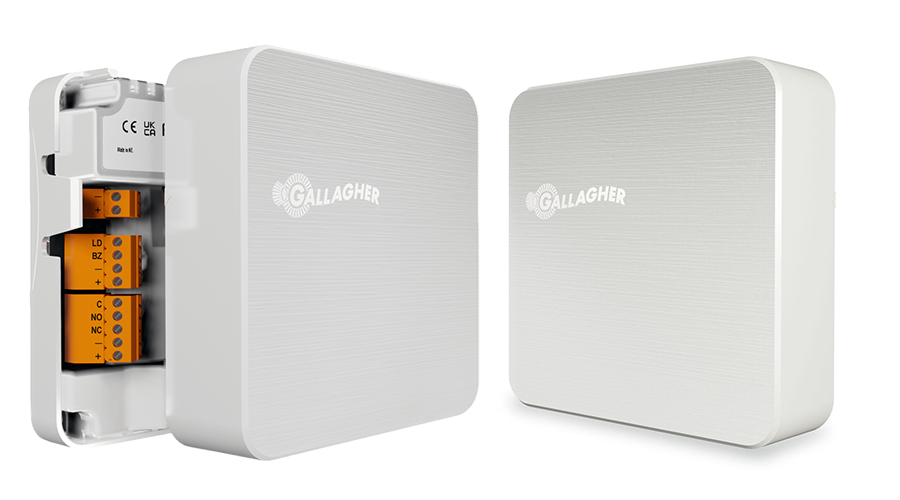

The Controller 7000 Single Door (C7000 SD) is a powerful network connected controller, providing a complete and flexible solution for your business expansion. The C7000 SD Power over Ethernet variants are designed to remove the need for power supplies, cabinets, and long expensive cable runs β reducing cost and time of installation. The small but mighty device is a lower-cost controller that can be utilized for system interfaces, alarm monitoring, perimeter security, and external device control.β― The C7000 SD is designed to operate as a standalone or to complement the capabilities of existing Gallagher hardware.
- Complete solution for single door access control with multiple readers.
- Power over Ethernet variant connects directly to a buildingβs structured cabling. DC power variant available for installation in a cabinet.
- Optional PoE+ battery charging for local power backup.
- Fully authenticated and encrypted connectivity with all other Gallagher Controllers and Gallagher devices on site.
- Support for centralized or distributed building wiring topologies.
- Onboard support for up to 6 inputs for all power, door, and alarm sensors.
- Onboard relay output and a transistor output for a siren or strobe, etc.
- Transistor output can be used as a second relay with the Gallagher Controller 7000 relay board.
- On board front and rear tampers for installation outside of a cabinet.
- Mounting plates, mounting block, and DIN rail adapters are available to provide flexible options for installations.
- High speed RS-485 connectivity and software updates to downstream devices.
- Support for integrated perimeter security.
- Support for Elevator Control.
- Support for integration directly with building management system.
- Future High Security version will be available for sites with specific security and/or Government standards compliance needs.
- Controller based API support for direct controller communication with 3rd party systems.
- Full support for intruder alarms in conjunction with up to 256 HBUS IO and a Gallagher T20.
