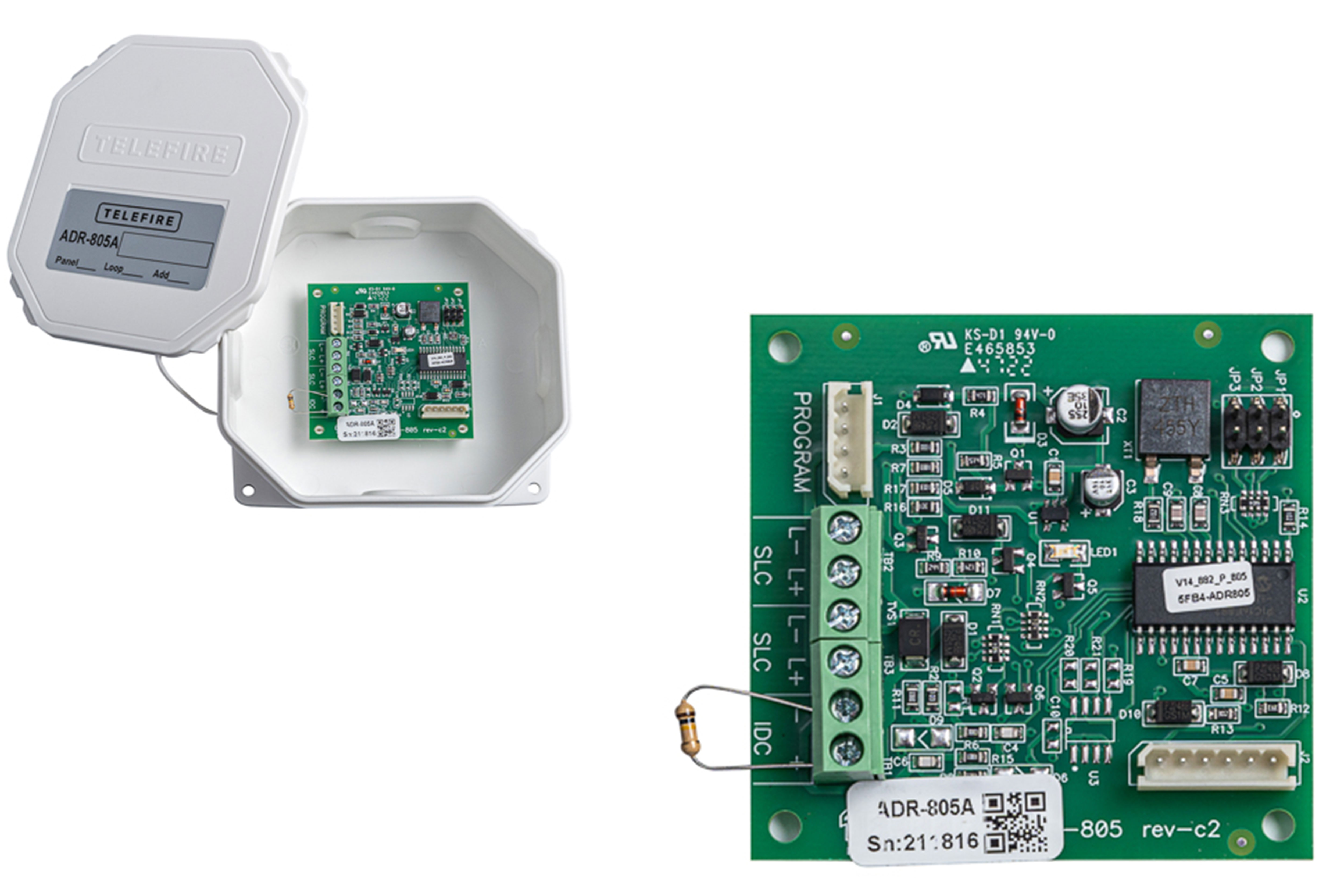

ADR-805 seamlessly interfaces between 7000 series and non-powered initiating devices, offering reliable supervision and communication through the SLC.
The ADR-805 switch input module serves as a crucial link between 7000 series and non-powered initiating devices, including presostats, alarm switches, valves, and more. Powered by the SLC, it eliminates the need for a 24 Vdc input, ensuring efficient operation. The module's input is rigorously supervised for short, open, alarm, and normal status, with configuration jumpers allowing adaptable operation modes. Installation flexibility ranges from close proximity (within 10m) without short supervision to up to 100m with short supervision.
- Dimensions: Compact module PCB (70mm x 70mm), AIB-800 (167mm x 125mm x 33mm).
- Lightweight design with a weight of 21 grams.
- Operating temperature range from -10°C to +60°C.
- Operating Voltage: 21 V, modulated (supplied by the control panel via SLC).
- Low current consumption in both quiescence (200 µA) and alarm (2.0 mA) modes for efficiency.
- Onboard LED indicator flashes during addressed by control panel and latches upon an alarm, offering clear visual feedback.
- Input Design: IDC 1, Supervised, current-limited input.
- EOL Resistor: 100K – use P/N EOL-100.
- Alarm Resistance: 3.9K (when using short supervision).
- Interfaces seamlessly between 7000 series and non-powered initiating devices.
- SLC-powered module, eliminating the need for a 24 Vdc input.
- Rigorous supervision for short, open, alarm, and normal statuses.
- Flexible installation within 10m without short supervision or up to 100m with short supervision.
- Single-address occupancy for streamlined integration.
- Onboard LED for instant visual feedback during control panel addressing and alarms.
Download To See All Specifications
Download- UL
- EN-54

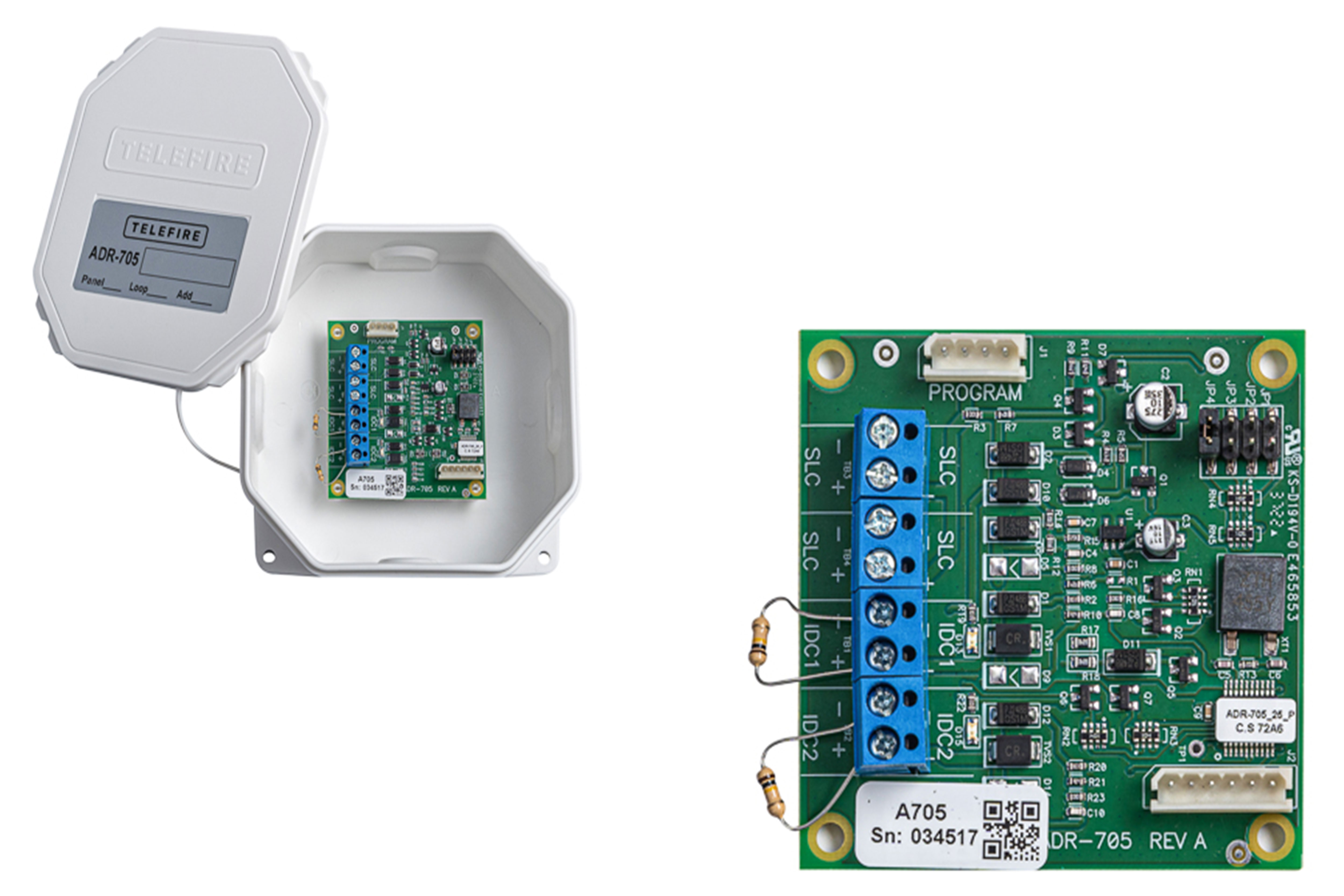

ADR-705
Addressable Dual Switch Interface Module
The ADR-705 by Telefire seamlessly connects control panels to non-powered devices, enhancing fire safety with smart supervision and visual feedback during alarms. Telefire’s ADR-705 plays a crucial role in fire safety infrastructure, acting as a reliable link between control panels and non-powered devices like alarm switches and sprinkler flow switches. Simplifying installation, it draws power directly from the system, eliminating the need for additional power sources. The ADR-705 offers smart supervision, keeping a vigilant eye on device status for consistent and reliable operation. Its user-friendly design includes an onboard indicator that flashes when addressed by the control panel and latches on upon an alarm, providing quick and clear visual feedback. Installation flexibility is a key feature, with options for short or non-supervised modes to accommodate various setups.
- Dimensions: Compact module PCB (70mm x 70mm), AIB-800 (167mm x 125mm x 33mm).
- Operating Voltage: 21 V, modulated (supplied by the control panel via SLC).
- Input Design: IDC 2, Supervised, current-limited input.
- EOL Resistor: 100K – use P/N EOL-100.
- Alarm Resistance: 3.9K (when using short supervision).
- Operates smoothly within a temperature range from -10°C to +60°C.
- Relative humidity tolerance from 10% to 93% non-condensing.
Download To See All Specifications
Download- UL
- EN-54
- Efficient interface connecting control panels to non-powered devices for enhanced fire safety.
- Direct power draw from the system, eliminating the need for an extra power source.
- Smart supervision ensures consistent and reliable operation, monitoring device status.
- Onboard indicator flashes during addressed by control panel and latches upon an alarm, offering clear visual feedback.
- Flexible installation with options for short or non-supervised modes, adapting to different setups.
- Proximity installation capabilities simplify integration up to 10m without supervision or up to 100m with it.
- Compatible with Telefire's ADR-7000, providing a comprehensive fire safety enhancement.
- User-friendly operation with tech features simplifying fire safety system complexities.
- Current-efficient performance with minimal impact on power consumption.

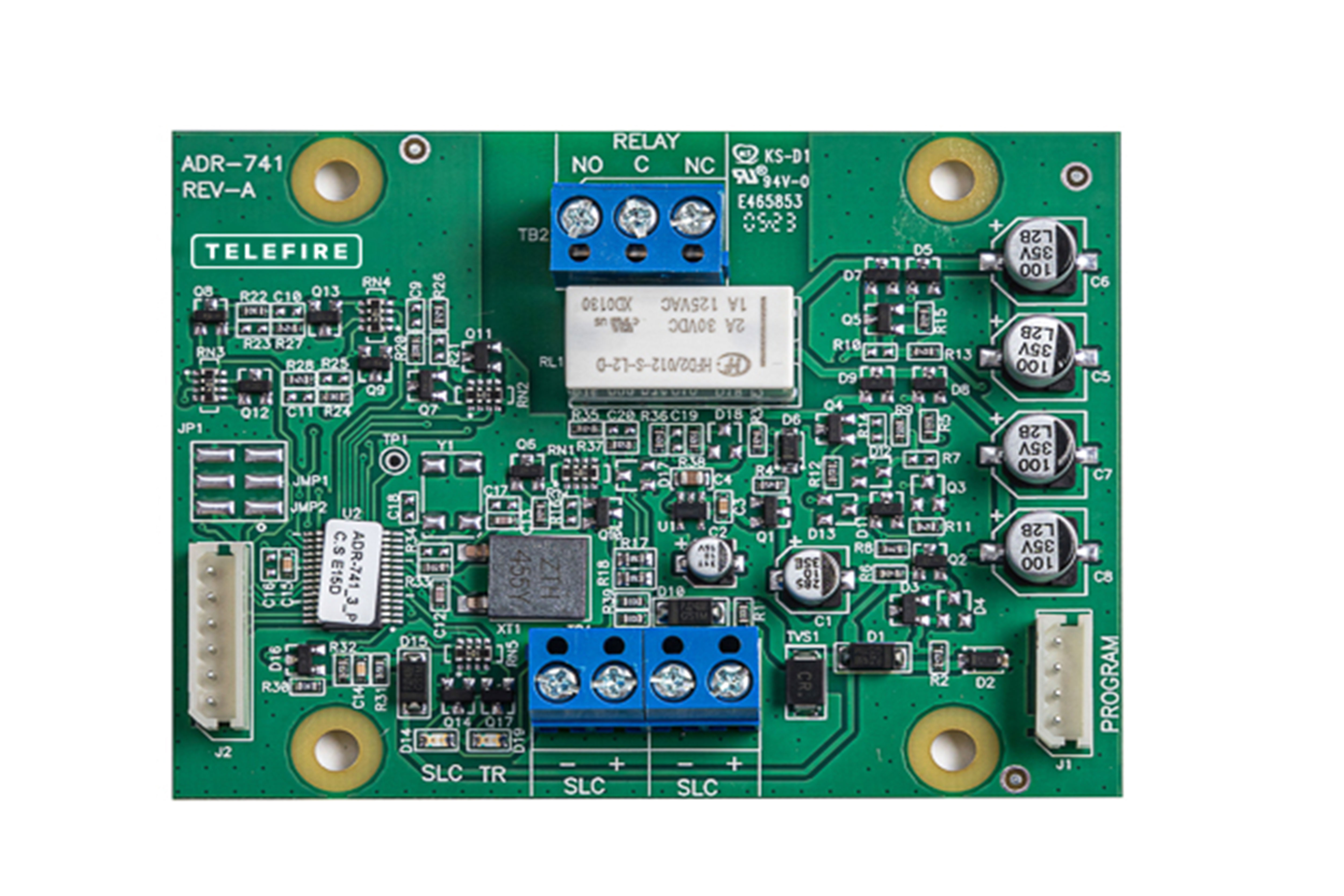

ADR-741
Addressable Relay Module
The ADR-741 is an addressable relay module with dry contact relays, designed for actions like electricity disconnect or elevator recall via relay activation. The ADR-741 is a vital component for executing specific actions such as electricity disconnect or elevator recall through its dry contact relays. Occupying a single address, the module’s non-volatile memory stores the address, programmable and verifiable, using the Addressable Detector and Accessory Programmer. The onboard indicating LED flashes when addressed by the control panel, providing clear activation feedback. Supervised by the control panel, the ADR-741 communicates via the SLC, ensuring seamless integration with a full range of addressable control panels.
- Compact module PCB dimensions of 86mm (width) x 65mm (height) for easy integration.
- Lightweight design with a weight of 60 grams.
- Operating temperature range from -10°C to +60°C.
- Relative humidity tolerance from 10% to 93% non-condensing.
- Low current consumption in both quiescence (280µA) and alarm (3.2mA) modes for efficiency.
- SLC voltage of 21V, modulated, ensuring effective communication.
- Local red LED for immediate indication of module status.
Download To See All Specifications
Download- Addressable relay module for electricity disconnect or elevator recall actions.
- Single-address occupancy with non-volatile memory for easy programming.
- Onboard indicating LED for clear activation feedback.
- Seamless compatibility with Telefire's complete range of addressable control panels.
- Vital for applications requiring specific relay-activated functions.
- EN-54
- UL

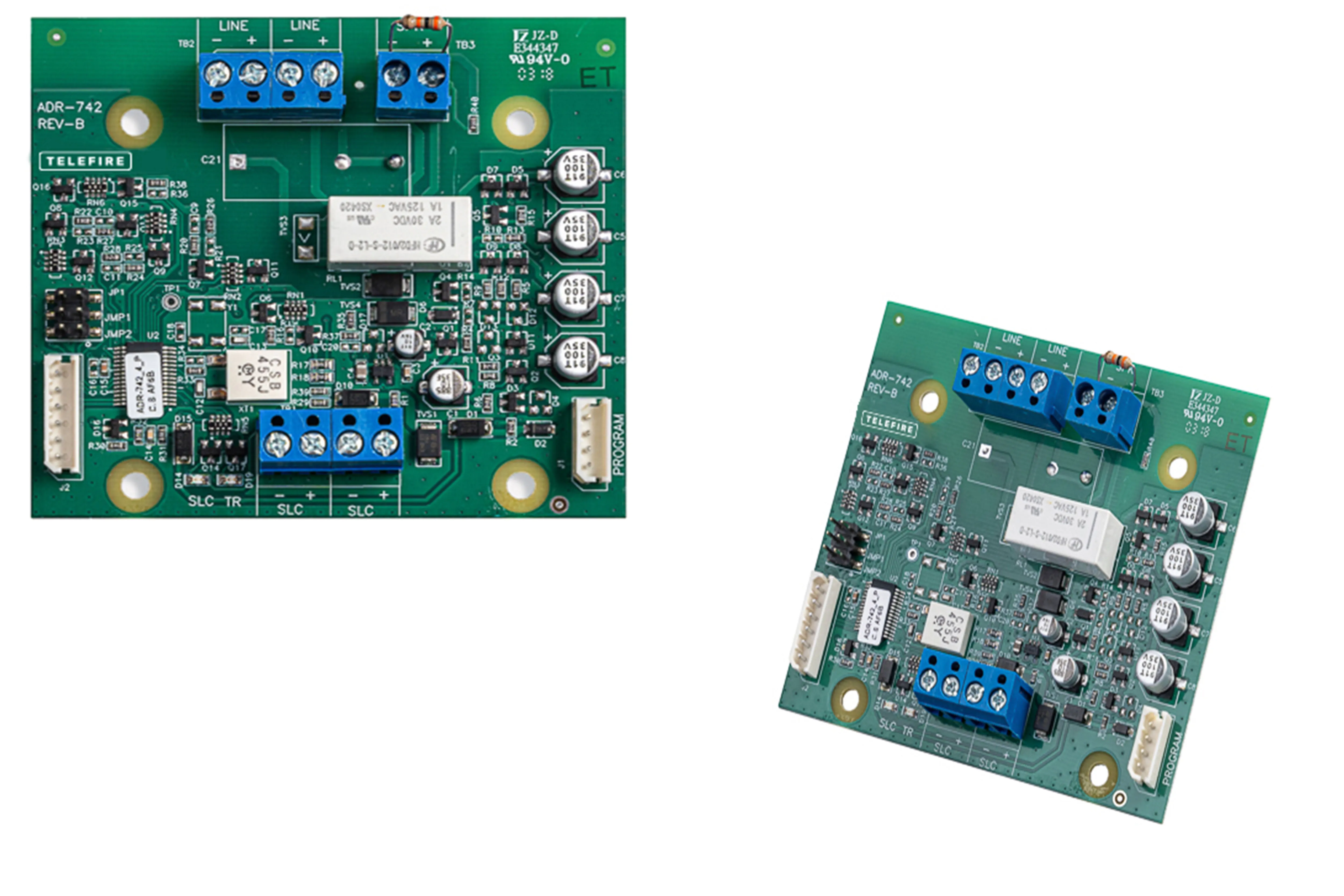

ADR-742
Addressable AC / DC Switching Module
The ADR-742 module facilitates the monitoring and activation of speakers for public announcements through a matrix applied in the addressable fire detection control panel, allowing for versatile activation scenarios. The ADR-742 is designed for efficient monitoring and activation of speakers, enabling general activation (all call) or individual/group activation through a matrix applied in the addressable fire detection control panel. All connected devices, including speakers or other devices based on the application, are continuously monitored on standby for normal activation. Powered by the device communications line (SLC), the ADR-742 eliminates the need for a separate 24Vdc power supply. Occupying a single address, it offers seamless integration with the control panel, utilizing non-volatile memory for easy address programming. The module is supervised by the control panel and communicates via the SLC, providing reliable performance.
- Compact module PCB dimensions of 86mm (width) x 65mm (height) for easy integration.
- Lightweight design with a weight of 60 grams.
- Operating temperature range from -10°C to +60°C.
- Relative humidity tolerance from 10% to 93% non-condensing.
- Low current consumption in both quiescence (280µA) and alarm (3.2mA) modes for efficiency.
- SLC voltage of 21V, modulated, ensuring effective communication.
- Max audio switching power of 50W for enhanced functionality.
Download To See All Specifications
Download- Addressable module for monitoring and activating speakers for public announcements.
- Versatile activation scenarios: general (all call) or individual/group activation.
- Standby monitoring of connected devices for normal activation.
- SLC-powered, eliminating the need for a separate 24Vdc power supply.
- Single-address occupancy with non-volatile memory for easy programming.
- Seamless integration with the addressable fire detection control panel.
- EN-54
- UL

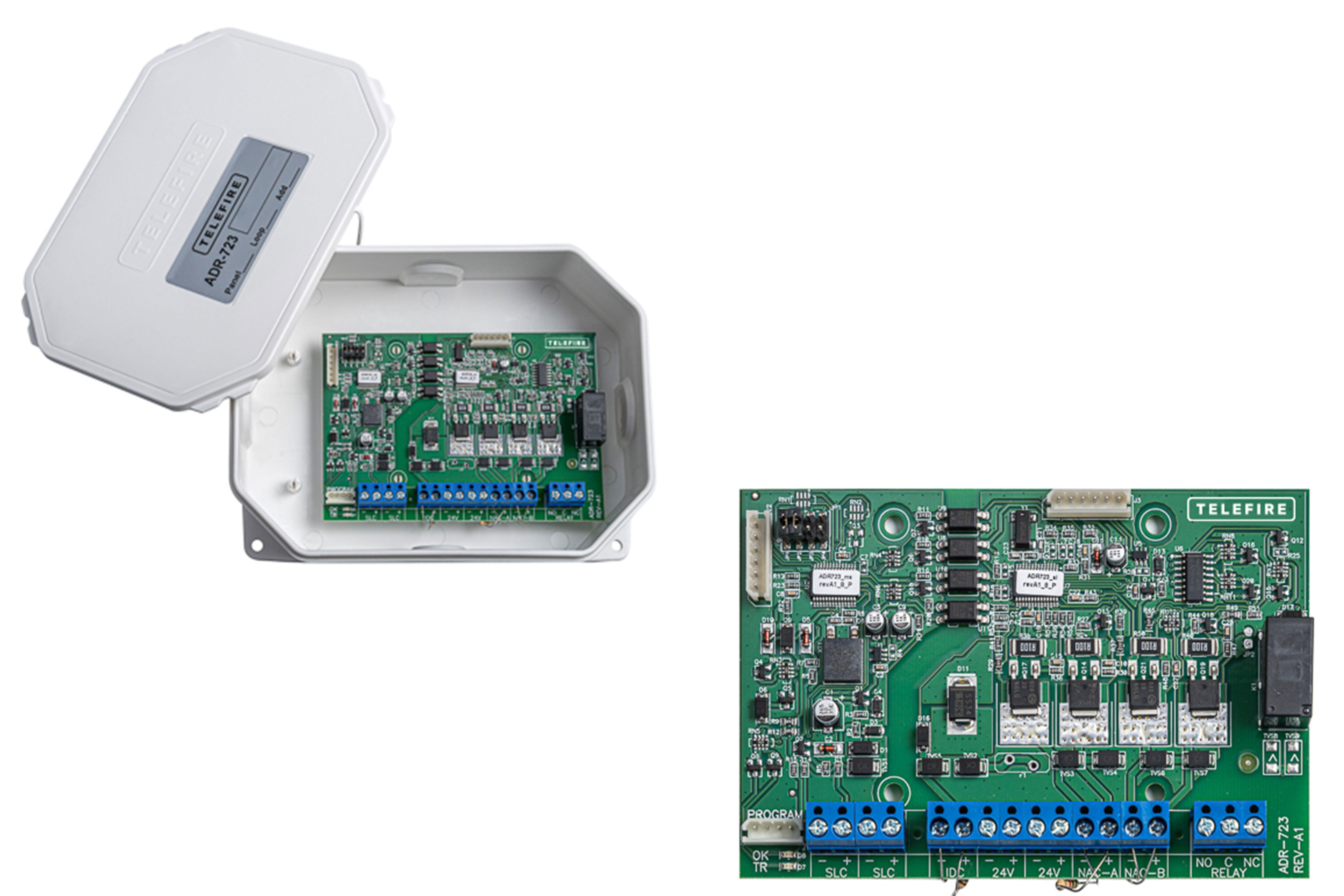

ADR-723
Addressable High-Power Output / Input Module
ADR-723 is a versatile Addressable High-Power Output/Input Module, seamlessly connecting 7000 series control panels with various warning, alarm, and extinguishing devices. The ADR-723 acts as a bridge between 7000 series control panels and multiple devices, enabling supervisory, alarm, and automatic extinguishing functions. With two reversed polarity output circuits (NAC) and a single initiating device circuit (IDC), it supports seamless control. Configurable through jumpers, it occupies one to three consecutive addresses, offering flexibility in deployment. Communicating through the SLC line, it ensures effective load circuit supervision, reporting open or short circuits for enhanced reliability.
- Configurable through jumpers for versatile deployment.
- Effective reporting of open or short circuits for enhanced reliability.
- Compatibility with 7000 series panels, On/Off switches, and various output devices.
- NFPA Classification: Style 4 Class B for enhanced safety.
- Electronic current limit for reliable protection.
- Low current consumption in quiescence and alarm modes, ensuring efficient performance.
- Each NAC has current limitation beyond 2A.
Download To See All Specifications
Download- Addressable High-Power Module for device control.
- Interfaces with 7000 series panels with warning, alarm, and extinguishing devices.
- Reversed polarity NAC outputs, single IDC for seamless control.
- Configurable through jumpers for flexible deployment.
- Effective communication via SLC circuit, ensuring reliable system supervision.
- Lightweight and compact design for easy integration.
- EN-54
- UL

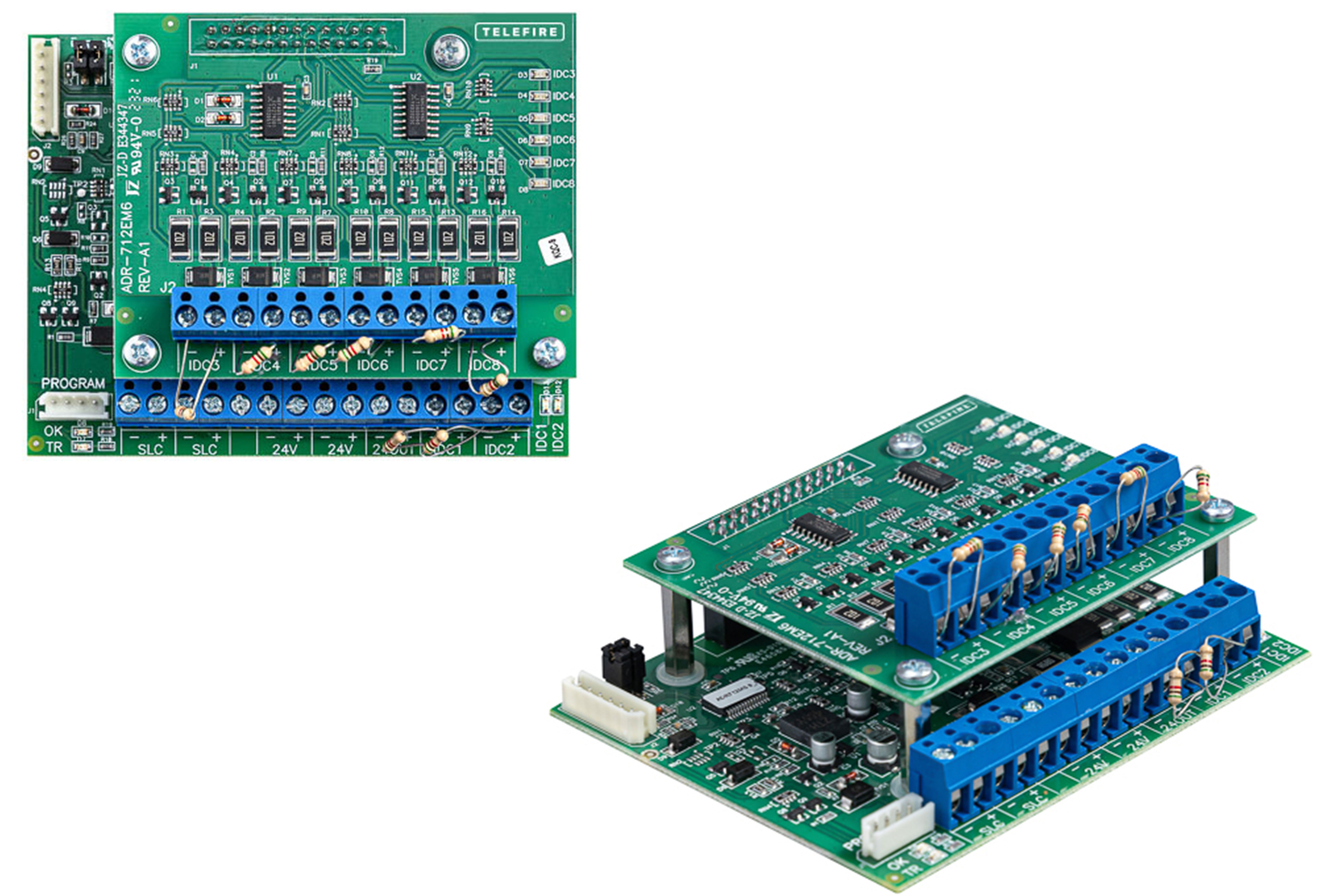

ADR-718
Addressable Eight-Zone Input Module
The ADR-718 Addressable Eight-Zone Input Module enhances fire safety with comprehensive zone supervision and efficient communication with 7000 series control panels. ADR-718 is an advanced Eight-Zone Input Module serving as an extension of the ADR-712, the ADR-718 supervises four or eight detection zones, each with its unique address. This module, when equipped with the optional expansion module ADR-712, occupies eight sequential addresses, ensuring comprehensive coverage. The ADR-718, like its counterpart, is easily programmed with the Addressable Detector and Accessory Programmer. Ground leaks, shorts, open circuits, and over-current conditions are effectively supervised, enhancing the overall reliability of fire safety systems.
- Compact module PCB dimensions of 100mm (width) x 80mm (height).
- Nominal weight of 70 grams for easy installation.
- Operating temperature range from 0°C to +49°C.
- Relative humidity tolerance from 10% to 93% non-condensing.
- Operating voltage supplied by the control panel via SLC at 21 V, modulated.
- Maximum current consumption of 300μA in quiescence mode and 15mA in alarm mode (single zone).
- Local indication LEDs for effective system monitoring and fault detection.
Download To See All Specifications
Download- Addressable Eight-Zone Input Module for comprehensive fire safety.
- Extends the capabilities of ADR-712 with optional expansion module ADR-712EM6.
- Supervises four or eight detection zones, ensuring comprehensive coverage.
- Easy programming with the Addressable Detector and Accessory Programmer.
- Ground leaks, shorts, open circuits, and over-current conditions effectively supervised.
- Galvanically isolated communication SLC loop from 24V power supply.
- Reliable performance in diverse environmental conditions.
