OUR PRODUCTS

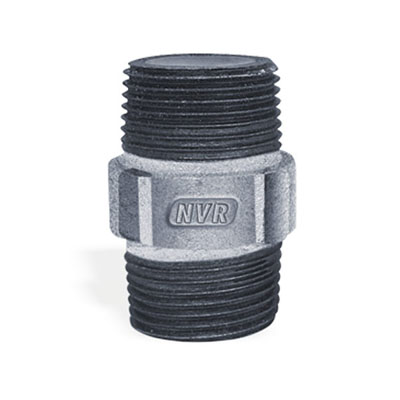

Nipple
Nipple
Description :
Free from Rust & Leakage Hot Galvanized with Thick Uniform Zinc Coating Best for Underground Installation Perfect Thread and Angle Alignment Heavy Pattern & Superb in Quality & Performance.
| Nominal Size in inches | Dimensions in mm (A) | Diameter in mm (D) | Weight in gm/per pc |
|---|---|---|---|
| 1/2" | 46.00 | 26.00 | 84 |
| 3/4" | 49.00 | 32.00 | 151 |
| 1" | 55.50 | 40.00 | 215 |
| 11/4" | 59.00 | 49.00 | 287 |
| 11/2" | 61.00 | 52.00 | 372 |
| 2" | 70.00 | 65.00 | 564 |
| 21/2" | 77.00 | 85.00 | 780 |
| 3" | 85.00 | 99.00 | 1125 |
| 4" | 97.00 | 126.00 | 1800 |

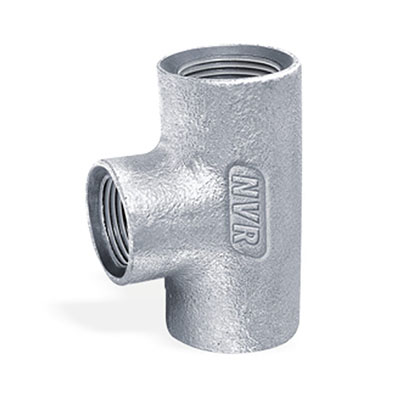

Reducing Tee
Reducing Tee
Description :
Free from Rust & Leakage Hot Galvanized with Thick Uniform Zinc Coating Best for Underground Installation Perfect Thread and Angle Alignment Heavy Pattern & Superb in Quality & Performance.
| Nominal Size in inches | Dimensions in mm (A) | Diameter in mm (D) | Weight in gm/per pc |
|---|---|---|---|
| 1/2" | 29.50 | 30.00 | 175 |
| 3/4" | 34.00 | 36.00 | 268 |
| 1" | 38.50 | 42.00 | 345 |
| 11/4" | 45.50 | 52.00 | 574 |
| 11/2" | 51.00 | 57.00 | 700 |
| 2" | 58.50 | 70.00 | 970 |
| 21/2" | 69.50 | 86.00 | 1466 |
| 3" | 78.00 | 100.00 | 2200 |
| 4" | 96.50 | 126.00 | 3800 |

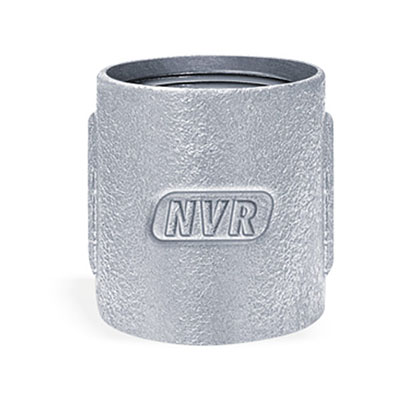

Socket
Socket
Description :
Free from Rust & Leakage Hot Galvanized with Thick Uniform Zinc Coating Best for Underground Installation Perfect Thread and Angle Alignment Heavy Pattern & Superb in Quality & Performance.
| Nominal Size in inches | Dimensions in mm (A) | Diameter in mm (D) | Weight in gm/per pc |
|---|---|---|---|
| 1/2" | 36.20 | 30.00 | 95 |
| 3/4" | 39.20 | 36.00 | 140 |
| 1" | 45.20 | 42.00 | 178 |
| 11/4" | 50.30 | 52.00 | 266 |
| 11/2" | 55.30 | 57.00 | 330 |
| 2" | 65.00 | 71.00 | 575 |
| 21/2" | 73.50 | 87.00 | 916 |
| 3" | 80.50 | 100.00 | 1266 |
| 4" | 95.00 | 126.00 | 1623 |

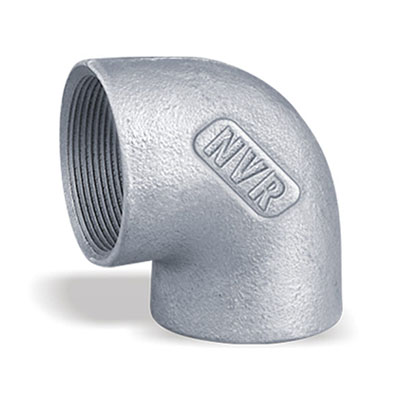

Reducing Elbow
Reducing Elbow
Description :
Free from Rust & Leakage Hot Galvanized with Thick Uniform Zinc Coating Best for Underground Installation Perfect Thread and Angle Alignment Heavy Pattern & Superb in Quality & Performance.
| Nominal Size in inches | Dimensions in mm (A) | Diameter in mm (D) | Weight in gm/per pc | ||
|---|---|---|---|---|---|
| (A) | (B) | (D1) | (D2) | ||
| 3/4" x 1/2" | 32.00 | 33.00 | 30.00 | 36.00 | 180 |
| 1" x 1/2" | 33.50 | 35.00 | 30.00 | 42.00 | 190 |
| 1" x 3/4" | 36.50 | 37.50 | 36.00 | 42.00 | 240 |
| 11/4" x 1/2" | 35.50 | 40.50 | 30.00 | 52.00 | 293 |
| 11/4" x 3/4" | 38.00 | 43.00 | 36.00 | 52.00 | 300 |
| 11/4" x 1" | 41.50 | 43.50 | 42.00 | 52.00 | 358 |
| 11/2" x 1/2" | 37.00 | 44.00 | 30.00 | 57.00 | 322 |
| 11/2" x 3/4" | 40.00 | 45.50 | 36.00 | 57.00 | 335 |
| 11/2" x 1" | 43.00 | 47.50 | 42.00 | 57.00 | 375 |

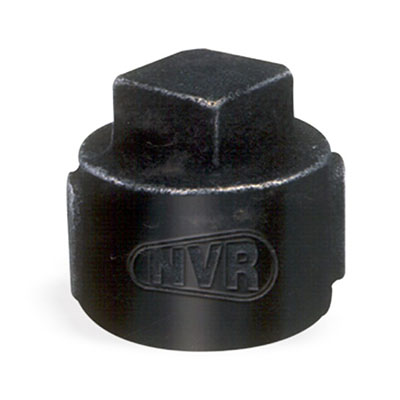

Cap Plug
Cap Plug
Description :
Free from Rust & Leakage Hot Galvanized with Thick Uniform Zinc Coating Best for Underground Installation Perfect Thread and Angle Alignment Heavy Pattern & Superb in Quality & Performance.
| Nominal Size in inches | Dimensions in mm (A) | Diameter in mm (D) | Weight in gm/per pc |
|---|---|---|---|
| 1/2" | 40.00 | 29.00 | 080 |
| 3/4" | 39.00 | 34.00 | 120 |
| 1" | 46.00 | 41.00 | 160 |
| 11/4" | 47.00 | 50.00 | 280 |
| 11/2" | 52.00 | 56.00 | 350 |
| 2" | 55.00 | 71.00 | 500 |
| 21/2" | 55.00 | 87.00 | 580 |
| 3" | 59.00 | 101.00 | 980 |
| 4" | 70.00 | 126.00 | 1350 |

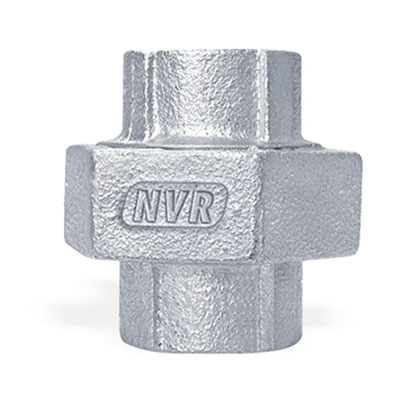

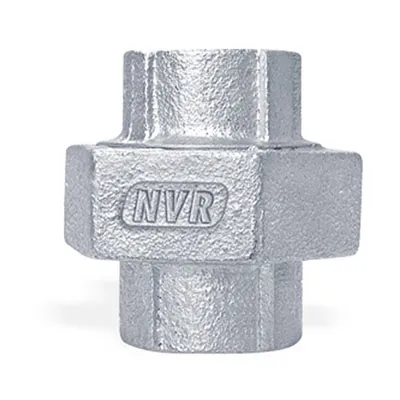

Union
Union
Description :
Free from Rust & Leakage Hot Galvanized with Thick Uniform Zinc Coating Best for Underground Installation Perfect Thread and Angle Alignment Heavy Pattern & Superb in Quality & Performance.
| Nominal Size in inches | Dimensions in mm (A) | Diameter in mm (D) | Weight in gm/per pc |
|---|---|---|---|
| 1/2" | 48.20 | 30.00 | 260 |
| 3/4" | 52.20 | 36.00 | 343 |
| 1" | 59.00 | 42.00 | 475 |
| 11/4" | 66.50 | 42.00 | 660 |
| 11/2" | 71.00 | 57.00 | 774 |
| 2" | 79.00 | 70.00 | 1175 |
| 21/2" | 85.00 | 86.00 | 1875 |
| 3" | 95.00 | 100.00 | 2555 |
| 4" | 111.00 | 126.00 | 4050 |

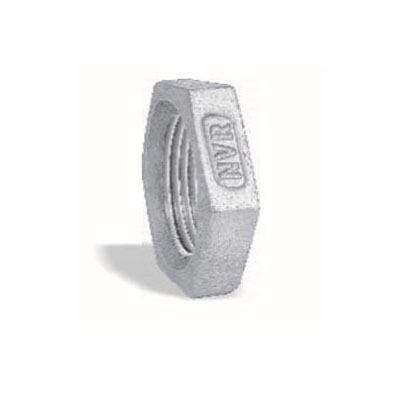

Check Nut
Check Nut
Description :
Free from Rust & Leakage Hot Galvanized with Thick Uniform Zinc Coating Best for Underground Installation Perfect Thread and Angle Alignment Heavy Pattern & Superb in Quality & Performance.
| Nominal Size in inches | Dimensions in mm (A) | Diameter in mm (D) | Weight in gm/per pc |
|---|---|---|---|
| 1/2" | 33.00 | 10.00 | 45 |
| 3/4" | 38.00 | 11.00 | 54 |
| 1" | 47.00 | 12.00 | 84 |
| 11/4" | 56.00 | 12.00 | 110 |
| 11/2" | 60.00 | 12.00 | 120 |
| 2" | 73.00 | 20.00 | 340 |

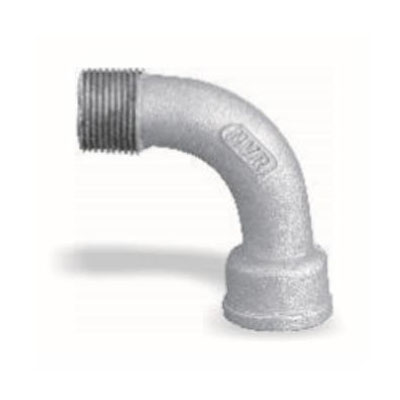

Bend
Bend
Description :
Free from Rust & Leakage Hot Galvanized with Thick Uniform Zinc Coating Best for Underground Installation Perfect Thread and Angle Alignment Heavy Pattern & Superb in Quality & Performance.
| Nominal Size in inches | Dimensions in mm (A) | Diameter in mm (D) | Weight in gm/per pc | |
|---|---|---|---|---|
| (A) | (B) | (D) | ||
| 1/2" | 55.00 | 48.00 | 30.00 | 155 |
| 3/4" | 69.00 | 50.00 | 36.00 | 250 |
| 1" | 85.00 | 75.00 | 42.00 | 384 |
| 11/4" | 105.00 | 95.00 | 52.00 | 710 |
| 11/2" | 116.00 | 105.00 | 57.00 | 900 |
| 2" | 140.00 | 130.00 | 70.00 | 1490 |

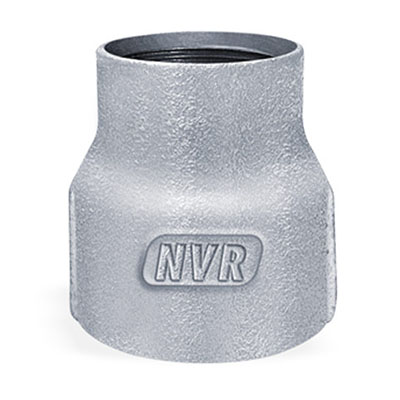

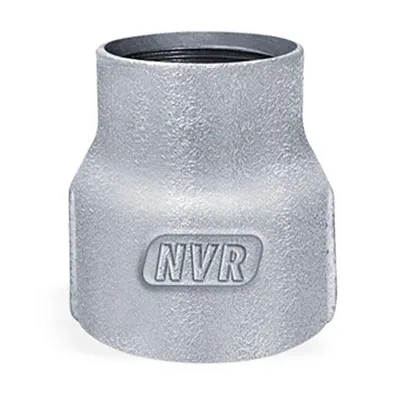

Reducing Socket
Reducing Socket
Description :
Free from Rust & Leakage Hot Galvanized with Thick Uniform Zinc Coating Best for Underground Installation Perfect Thread and Angle Alignment Heavy Pattern & Superb in Quality & Performance.
| Nominal Size in inches | Dimensions in mm | Diameter in mm | Weight in gm/per pc | |
|---|---|---|---|---|
| (A) | (D1) | (D2) | ||
| 3/4" x 1/2" | 40.50 | 30.00 | 36.00 | 122 |
| 1" x 1/2" | 46.50 | 30.00 | 42.00 | 156 |
| 1" x 3/4" | 46.50 | 30.00 | 42.00 | 170 |
| 11/4" x 1/2" | 51.00 | 30.00 | 52.00 | 240 |
| 11/4" x 3/4" | 51.00 | 36.00 | 52.00 | 250 |
| 11/4" x 1" | 51.00 | 42.00 | 52.00 | 258 |
| 11/2" x 1/2" | 56.50 | 30.00 | 57.00 | 296 |
| 11/2" x 3/4" | 56.50 | 36.00 | 57.00 | 300 |
| 11/2" x 1" | 56.50 | 42.00 | 57.00 | 310 |
| 11/2" x 11/4" | 56.50 | 52.00 | 57.00 | 317 |
