OUR PRODUCTS

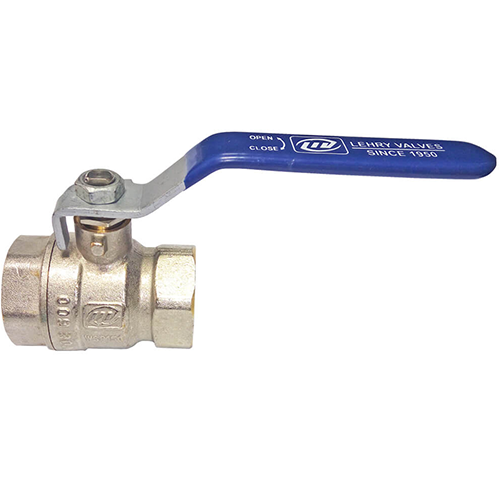

Forged Brass Ball Valve
LIV-BLV-BS-001
LIV-BLV-BS-001
LEHRY Forged Brass ball Valve Screwed End. Suitable for domestic water services, heating, air conditioning plants and compressed air systems
- Female/Female threads
- Flat lever handle with decromet Plate for Anti Rust.
- Body in nickel-plated brass
- Minimum and maximum working temperatures: -20°C, 120°C in absence of steam
- Threads ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
| SL. No | Description | Material |
|---|---|---|
| 1 | Nut | Steel Decromet Plated to prevent Corrosion |
| 2 | Handle | Steel Decromet Plated to prevent Corrosion |
| 3 | Pressing Cap | Brass with Nickel Plated |
| 4 | Packing | PTFE |
| 5 | Body | CW617N Brass in Nickel Plated (Forged Brass) |
| 6 | Seat | PTFE |
| 7 | Ball | CW617N Brass With Hard Chrome Plated |
| 8 | Bonnet | CW617N Brass in Nickel Plated (Forged Brass) |
| 9 | O-Ring | EPDM |
| 10 | Stem | CW617N Brass With Nickle Plated |
BALL VALVE WITH SS 304
LIV-BLV-BS-01A
LIV-BLV-BS-01A
FORGED BRASS BALL VALVE WITH SS 304 HANDLE
- Female/Female threads
- Flat lever handle of Stainless Steel 304
- Body in nickel-plated brass
- Minimum and maximum working temperatures: -20°C, 120°C in absence of steam
- Threads ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
| SL. No | Description | Material |
|---|---|---|
| 1 | Nut | SS 304 (ASTM A351 Gr. CF8) |
| 2 | Handle | SS 304 (ASTM A351 Gr. CF8) |
| 3 | Pressing Cap | Brass with Nickel Plated |
| 4 | Packing | PTFE |
| 5 | Body | CW617N Brass in Nickel Plated (Forged Brass) |
| 6 | Seat | PTFE |
| 7 | Ball | CW617N Brass With Hard Chrome Plated |
| 8 | Bonnet | CW617N Brass in Nickel Plated (Forged Brass) |
| 9 | O-Ring | EPDM |
| 10 | Stem | CW617N Brass |
Butterfly Handle
LIV-BLV-BS-002
LIV-BLV-BS-002

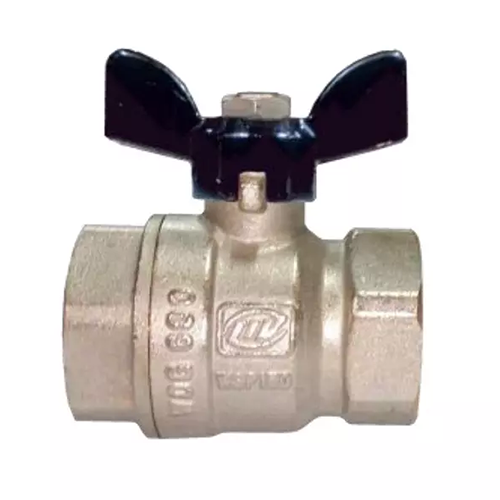

BRASS BALL VALVE WITH BUTTERFLY HANDLE
LEHRY Forged Brass ball Valve Screwed End With Aluminum Butterfly Handle. Suitable for domestic water services, heating, air-conditioning plants and compressed air systems
- Female/Female threads
- Flat lever handle with decromet Plate for Anti Rust.
- Body in nickel-plated brass
- Minimum and maximum working temperatures: -20°C, 120°C in absence of steam
- Threads ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
| SL. No | Description | Material |
|---|---|---|
| 1 | Hex Screw Cap | Steel Decromet Plated |
| 2 | T-Handle | Al-46100 (RAL 5002) |
| 3 | Packing Nut | Brass with Nickel Plated |
| 4 | Packing | PTFE |
| 5 | Body | CW617N Brass in Nickel Plated (Forged Brass) |
| 6 | Seat | PTFE |
| 7 | Ball | CW617N Brass With Hard Chrome Plated |
| 8 | Bonnet | CW617N Brass in Nickel Plated (Forged Brass) |
| 9 | O-Ring | EPDM |
| 10 | Stem | CW617N Brass With Nickle Plated |
Lead Free Froged Brass BV
LIV-BLV-LFBS-003
LIV-BLV-LFBS-003

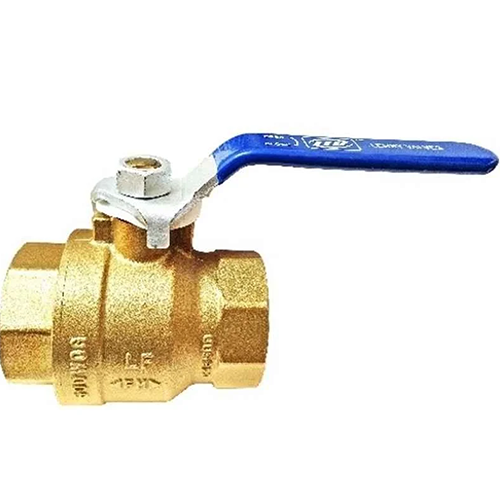

LEAD FREE FORGED BRASS BALL VALVE
LEHRY FULL BORE LEAD FREE FM APPROVED BRASS BALL VALVE F/F SCREWED END- C46500, Body : C46500 Lead Free Brass , End Connection: C46500 Lead Free Brass , Ball : 58-2A Brass (8mm-25mm) ; SS.304 (32mm ‚100mm), Stem : C46500 Lead Free Brass, Handle : Steel Decromet Plated to prevent Corrosion, Ball Seat : PTFE , Sleeve : PVC , Stuffing : PTFE , Nut : Steel, Gland Nut: 58-2A Brass
LEHRY MAKE Lead Free & FM Approved Forged Brass Ball Valve Screwed End, which is recommended for Green Building Certification. Suitable for domestic water, Oil & Gas services
- Female/Female threads
- Flat lever handle with decromet Plate for Anti Rust.
- C46500 Lead Free Forged Brass to 0.25%
- Minimum and maximum working temperatures: -20°C, 120°C in absence of steam
- Threads ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
| SL. No | Description | Material |
|---|---|---|
| 1 | Hex Nut | Steel Dacromet Plated to prevent Corrosion |
| 2 | Handle | Steel Dacromet Plated to prevent Corrosion / Stainless Steel |
| 3 | Packing Nut | Cu-Alloy |
| 4 | Packing Gland | PTFE |
| 5 | O-Ring | EPDM |
| 6 | Stem |
|
| 7 | Body | Forged Brass C46500 |
| 8 | Seat | PTFE |
| 9 | Ball |
|
| 10 | Bonnet | Forged Brass (C46500) |
Forged Brass Ball Valve (MxF)
LIV-BLV-BS-004
LIV-BLV-BS-004
FORGED BRASS BALL VALVE (MxF)
LEHRY FULL BORE FORGED BRASS BALL VALVE (MxF) SCREWED END- Body : CW617N Brass in Nickel Plated , End Connection: CW617N Brass in Nickel Plated , Ball : 58-2A Brass with Hard Chrome Plated, Stem : 58-2A Brass, Handle : Steel Decromet Plated to prevent Corrosion, Ball Seat : PTFE , Sleeve : PVC , Stuffing : PTFE , Nut : Steel, Gland Nut: 58-2A Brass, Ends : Screwed (Male x Female)
LEHRY MAKE Lead Free & FM Approved Forged Brass Ball Valve Screwed End, which is recommended for Green Building Certification. Suitable for domestic water, Oil & Gas services
- Female/Female threads
- Flat lever handle with decromet Plate for Anti Rust.
- C46500 Lead Free Forged Brass to 0.25%
- Minimum and maximum working temperatures: -20°C, 120°C in absence of steam
- Threads ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
| SL. No | Description | Material |
|---|---|---|
| 1 | Body | CW617N Brass in Nickel Plated (Forged Brass) |
| 2 | End Connection | CW617N Brass in Nickel Plated (Forged Brass) |
| 3 | Ball | CW617N Brass with Hard Chrome Plated |
| 4 | Stem | 58-2A Brass |
| 5 | Handle | Steel Decromet Plated to prevent Corrosion |
| 6 | Ball Seat | PTFE |
| 7 | Sleeve | PVC |
| 8 | Stuffing | PTFE |
| 9 | Nut | Steel Decromet Plated to prevent Corrosion |
| 10 | Gland Nut | 58-2A Brass |
Forged Brass Ball Valve (MxF)
LIV-BLV-BS-005
LIV-BLV-BS-005
FORGED BRASS BALL VALVE (MxF)

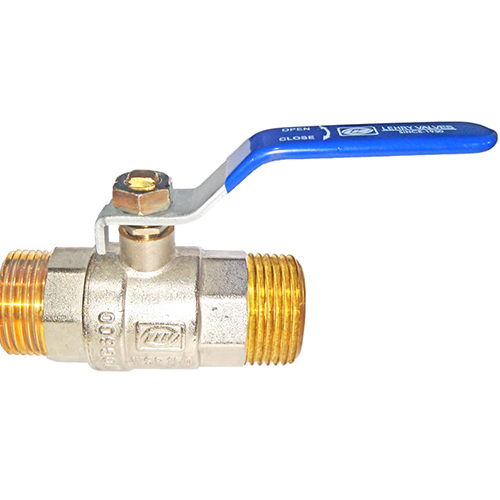

LEHRY FULL BORE FORGED BRASS BALL VALVE (MxM) SCREWED END- CW617N, Body : CW617N Brass in Nickel Plated , End Connection: CW617N Brass in Nickel Plated , Ball : 58-2A Brass with Hard Chrome Plated, Stem : 58-2A Brass, Handle : Steel Decromet Plated to prevent Corrosion, Ball Seat : PTFE , Sleeve : PVC , Stuffing : PTFE , Nut : Steel, Gland Nut: 58-2A Brass, Ends : Screwed (Male x Male)
LEHRY MAKE Lead Free & FM Approved Forged Brass Ball Valve Screwed End, which is recommended for Green Building Certification. Suitable for domestic water, Oil & Gas services
- Female/Female threads
- Flat lever handle with decromet Plate for Anti Rust.
- C46500 Lead Free Forged Brass to 0.25%
- Minimum and maximum working temperatures: -20°C, 120°C in absence of steam
- Threads ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
| SL. No | Description | Material |
|---|---|---|
| 1 | Body | CW617N Brass in Nickel Plated (Forged Brass) |
| 2 | End Connection | CW617N Brass in Nickel Plated (Forged Brass) |
| 3 | Ball | CW617N Brass with Hard Chrome Plated |
| 4 | Stem | 58-2A Brass |
| 5 | Handle | Steel Decromet Plated to prevent Corrosion |
| 6 | Ball Seat | PTFE |
| 7 | Sleeve | PVC |
| 8 | Stuffing | PTFE |
| 9 | Nut | Steel Decromet Plated to prevent Corrosion |
| 10 | Gland Nut | 58-2A Brass |
Extended Stem Brass BV
LIV-BLV-BS-006
LIV-BLV-BS-006

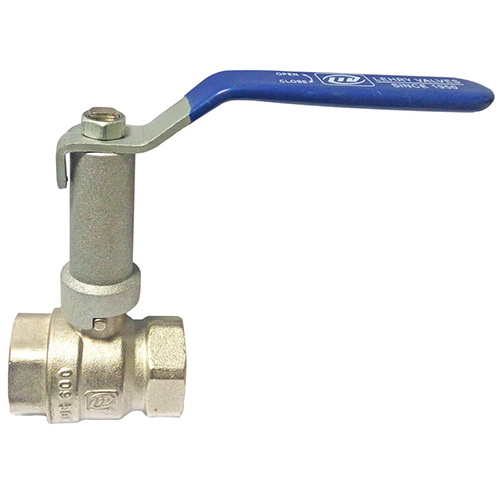

EXTENDED STEM BRASS BALL VALVE
LEHRY MAKE Extended Stem Type Brass ball Valve Screwed End. Suitable for domestic water services, heating, air-conditioning plants and compressed air systems, Female/Female threads. , Flat lever handle with decromet Plate for Anti Rust. , Body : CW617N, Stem : Brass, Seat : PTFE, Minimum and maximum working temperatures: -20°C, 120°C in absence of steam. Threads ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
LEHRY MAKE Lead Free & FM Approved Forged Brass Ball Valve Screwed End, which is recommended for Green Building Certification. Suitable for domestic water, Oil & Gas services
- Female/Female threads
- Flat lever handle with decromet Plate for Anti Rust.
- Body in nickel-plated brass.
- Minimum and maximum working temperatures: -20°C, 120°C in absence of steam
- Threads ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
Specifications
| SL. No | Description | Qty | Material |
|---|---|---|---|
| 1 | Hex-Nut | 1 | Steel Decromet Plated to prevent Corrosion |
| 2 | Handle | 1 | Steel Decromet Plated to prevent Corrosion |
| 3 | Gasket | 1 | Steel |
| 4 | Stem | 1 | Brass |
| 5 | Stem Cover | 1 | Aluminium Alloy |
| 6 | Packing Nut | 1 | Brass |
| 7 | Packing Gland | 1 | PTFE |
| 8 | Body | 1 | CW617N Brass in Nickel Plated (Forged Brass) |
| 9 | Ball | 1 | CW617N Brass with Hard Chrome Plated |
| 10 | Seat | 2 | PTFE |
| 11 | Bonnet | 1 | CW617N Brass in Nickel Plated (Forged Brass) |
| 12 | O-Ring | 1 | EPDM |
| 13 | Packing Glad | 1 | PTFE |
| 14 | Stem | 1 | 58-2A Brass |
Mini Ball Valve (FxF)
LIV-BLV-BS-007
LIV-BLV-BS-007

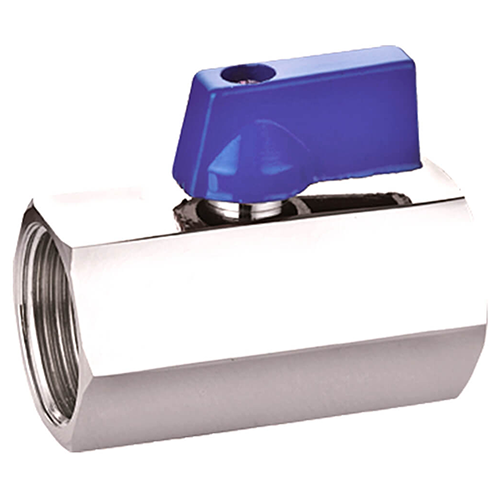

MINI BALL VALVE (F x F)
LEHRY Forged brass Mini Ball Valve Screwed End ( F x F)., Body : Forged Brass, Ball : Sand Blast Chrome Plated, Seat : PTFE, Ends : Screwed ( Female x Female)
LEHRY MAKE Lead Free & FM Approved Forged Brass Ball Valve Screwed End, which is recommended for Green Building Certification. Suitable for domestic water, Oil & Gas services
- Forged Brass CW617N
- Sand Blasted and Chrome Plated Finish
- Threaded to(F) BSP BS 21/ISO 228
Specifications
| SL. No | Description | Material |
|---|---|---|
| 1 | Locking Cap | ¼” Brass with Chrome Plated 3/8” – ½” Brass |
| 2 | O-Ring | NBR |
| 3 | Seat | PTFE |
| 4 | Ball | CW617N Brass with Chrome Plated |
| 5 | Seat | PTFE |
| 6 | Body | CW617N Brass with Chrome Plated |
| 7 | O-Ring | NBR |
| 8 | Handle | Aluminium Alloy |
| 9 | Screw | Q235 Plating Color Zinc |
| 10 | Stem | CW617N Brass with Nickel plated |
