OUR PRODUCTS
Fire Alarm Solutions - Panels

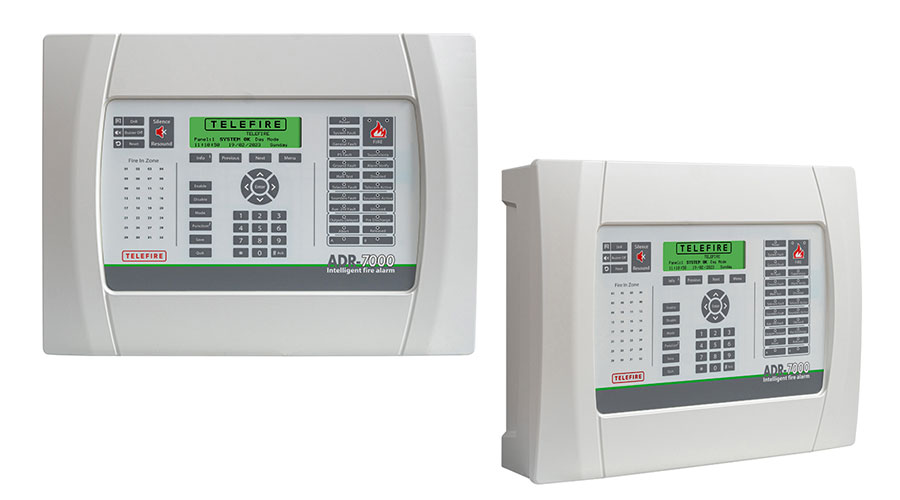

ADR-7000
Analog Addressable Smart Control Panel for Large and Complex Sites.
The ADR-7000 is an advanced analog smart control panel boasting cutting-edge technology and seamless integration for large and intricate endeavors. The ADR-7000 is an analog smart control unit developed using new and advanced technology. This cyber-secured system is designed for large and complex projects that demand advanced control, management, and programming capabilities. It can expand to accommodate up to 8 loops and control up to 1016 smart devices within a single unit. Proudly bearing the American UL standard mark, the European EN-54 standard mark, and compliant with UL-2900. it excels in fire detection, automatic extinguishing, smoke management, addressable PA systems, and seamless integration with various building systems.
- Modular design with support for up to 8 loops
- Scalable to handle up to 1016 addresses per control panel
- Extensive network capacity supporting up to 65,024 addresses on networked control panels
- Integration of up to 16 remote annunciator panels
- Versatile zoning capabilities with support for 511 logical zones
- Advance activation matrix (AAM)®
- Advance current management (ACM)®
- Robust integrated power supply delivering 150 W
- Substantial battery capacity, with each unit capable of handling up to 18 AH
- Multiple device communication options, including Class B and Class A SLC
- RS-485 communication with remote annunciators, both Class B and Class A
- Three programmable relays on the main board for flexible control options
- Enhanced visibility during alarms with LED zone display
- Two Notification Appliance Circuit (NAC) outputs for sounders and strobes
- Diverse computer communication connections, including RS-232, USB, and optional TCP/IP
- Integral address programmer for simplified configuration
- Integral diagnostic tools for addressable devices, networked panels and remote annunciators
- Feature-rich LCD screen with a resolution of 64*240 pixels for effective monitoring and control
- Modular analog smart control unit
- Ideal for large and complex projects
- Supports up to 8 loops and 1016 smart devices per control panel
- Networked up to 64 control panels
- Master-Slave configuration in control unit network
- Comprehensive fire detection capabilities
- Automatic extinguishing system integration
- Seamless integration with addressable PA systems
- Built-in smoke management for enhanced safety
- Cyber-secured for robust protection and compliance with UL 2900 for cybersecurity standards
- Modern and innovative design
- Versatile installation options, including flush or wall installation
- User-friendly graphic LCD display for easy operation
- LED event indicators for quick status assessment
- Intuitive symbolic and detailed interface
- Compliant with American standard UL & European standard EN 54
Download To See All Specifications
Download- UL
- UL-2900
- EN-54

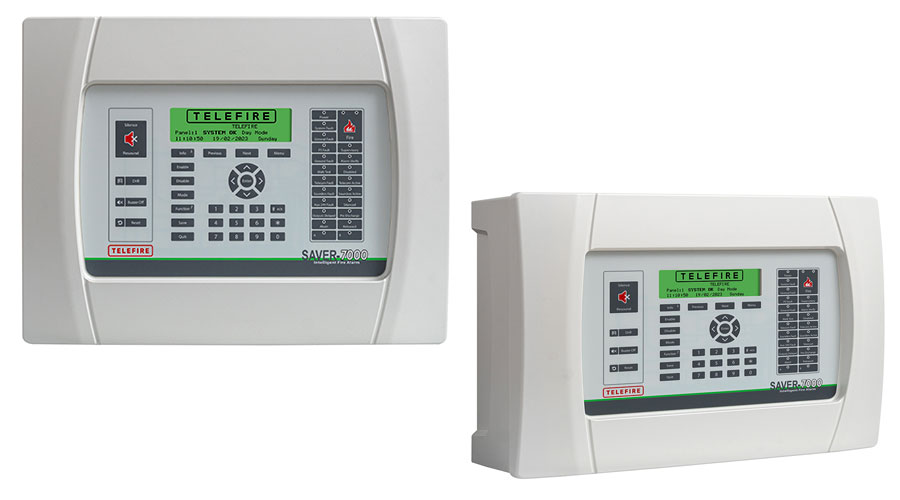

SAVER-7000
Addressable Smart Control Panel for medium-sized sites
The SAVER-7000 represents a significant advancement in analog smart control units, tailor-made for medium-sized sites. It seamlessly integrates into these projects while harnessing cutting-edge technology. At its core, SAVER-7000 incorporates the latest technological innovations in analog smart control. Designed with a focus on medium-sized sites, it excels in advanced control, precise management, and intricate programming. Expandable with up to 2 loops, effectively managing up to 254 smart Addressable devices within a single unit. Proudly bearing the American UL standard mark, the European EN 54 standard mark, and compliant with UL 2900, upholding stringent cybersecurity standards. Proficient in fire detection, automatic extinguishing, smoke management, addressable PA systems, and harmonious integration with a variety of building systems.
- Modular design with support for up to 2 loops
- Handles up to 254 addresses per control panel
- Supports integration of up to 3 remote annunciator panels.
- Versatile zoning capabilities with support for 254 logical zones
- Robust integrated power supply delivering 100 W
- Substantial battery capacity, with each unit capable of handling up to AH14
- Supports device communication in SLC, with both Class B and Class A integrated
- RS-485 communication with remote annunciators, supporting Class B configuration
- Equipped with three programmable relays on the main board
- Strobe synchronization for indications on the main panel for each loop
- Diverse computer communication connections, including RS-232, USB, and optional TCP/IP
- Integral address programmer for simplified configuration
- Feature-rich LCD screen with a resolution of 240 x 64 pixels
- Extensive history, capable of storing up to 9999 faults and 9999 alarms
- Integral diagnostic tools for the addressable device line (SLC) and the remote annunciator line (RS-485)
Download To See All Specifications
Download- UL-2900
- EN-54
- Modular analog smart control unit
- Ideal for medium-sized projects
- Supports up to 2 loops and 254 smart devices per control panel
- Comprehensive fire detection capabilities
- Automatic extinguishing system integration
- Seamless integration with addressable PA systems
- Built-in smoke management for enhanced safety
- Cyber-secured for robust protection and compliance with UL 2900 for cybersecurity standards
- Modern and innovative design
- Versatile installation options, including flush or wall installation
- User-friendly graphic LCD display for easy operation
- LED event indicators for quick status assessment
- Intuitive symbolic and detailed interface
- Compliant with American standard UL & European standard EN 54

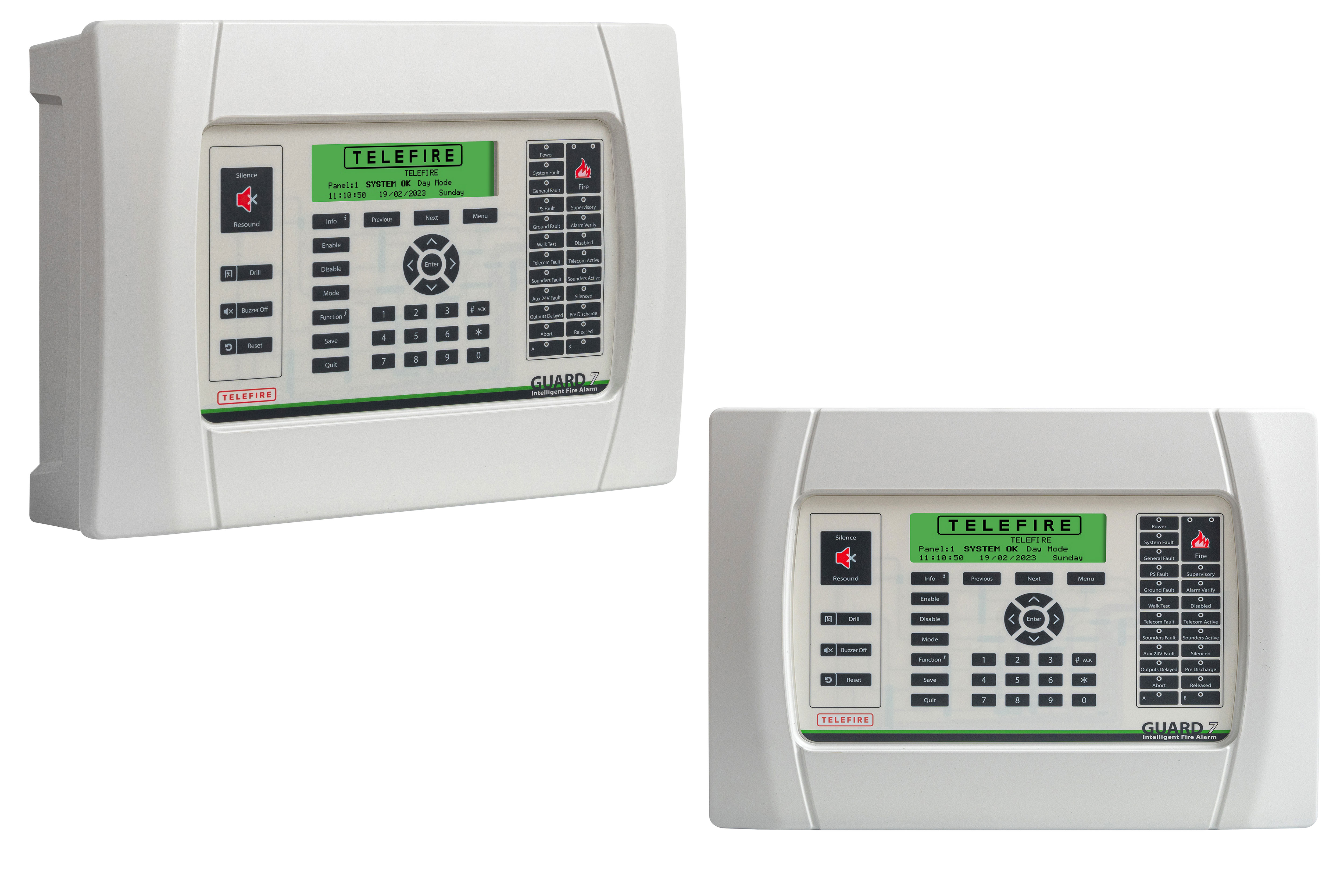

GUARD-7
Addressable Smart Control Panel for small-scale projects
GUARD-7 is an advanced addressable analog smart control unit designed for small-scale projects, delivering robust fire safety solutions with cutting-edge technology. GUARD-7 is a compact yet powerful solution that brings big-league fire safety capabilities to smaller sites. With the capacity to control up to 60 input and output devices, it ensures comprehensive protection in relatively modest buildings. This open fire detection and extinguishing system boasts a sleek modern design and user-friendly interfaces, making it an ideal choice for quick and efficient installation. Rapid programming and integral diagnostic tools simplify configuration and maintenance, ensuring reliable fire safety in compact environments. Proudly bearing the American UL standard mark, the European EN 54 standard mark, and compliant with UL 2900, upholding stringent cybersecurity standards.
- Modular design with support for up to 1 loop
- Handles up to 60 addresses per control panel
- Supports Class B device communication
- Advance activation matrix (AAM)®
- Advance current management (ACM)®
- Robust integrated power supply delivering 100 W
- Substantial battery capacity, handling up to 7 AH per unit
- Strobe synchronization for clear event indication
- Multiple computer communication options, including RS-232, USB, and optional TCP/IP
- Integral address programmer simplifies configuration
- Supports integration of up to 3 remote annunciator panels
- Integral diagnostic tools for addressable devices and remote annunciators
- Feature-rich LCD screen with a resolution of 64*240 pixels
Download To See All Specifications
Download- Modular analog smart control unit
- Tailored for small-scale projects with the capabilities of larger systems
- Supports up to 60 smart addressable devices per control panel
- Comprehensive fire detection capabilities
- Automatic extinguishing system integration
- Seamless integration with addressable PA systems
- Modular design for flexible installation and operation
- Cyber-secured for robust protection and compliance with UL 2900 for cybersecurity standards
- Versatile installation options, including flush or wall installation
- User-friendly graphic LCD display for easy operation
- LED event indicators for quick status assessment
- Intuitive symbolic and detailed interface
- Compliant with American standard UL & European standard EN 54
- EN-54
- UL-2900

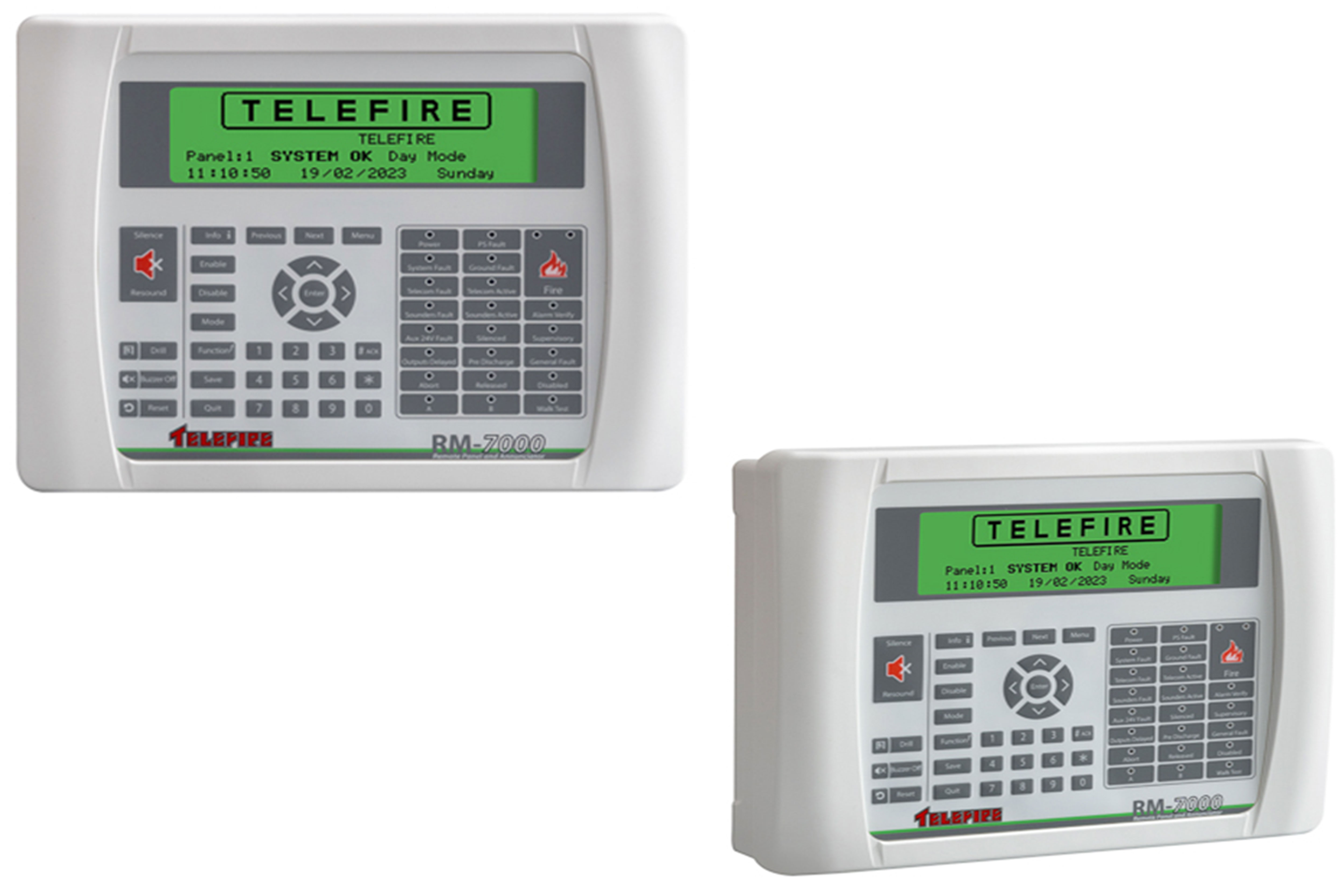

RM-7000
Analog Addressable Remote Panel and Annunciator
RM-7000 Remote Panel and Annunciator offer seamless control and oversight of the 7000 series addressable control panels from distant locations, enhancing security and management. Featuring an LCD display, keyboard, and built-in buzzer. These panels connect to the main control panel through a twisted wire pair (RS-485), accommodating up to 16 remote panels in either Class B or Class A configuration (only ADR-7000 or Saver-7000), each with a unique address. Fully supervised communication circuits ensure reliability, even in extensive systems. Powered by 24 VDC, sourced from the main panel or auxiliary power supplies like TPS-74A, the RM-7000 provides crucial fire alarm management flexibility.
- Dimensions: 325mm (width), 239mm (height), 58mm (depth)
- Powered by 24 VDC from the main control panel or auxiliary power supplies
- Operating temperature range: -10°C to +60°C
- Relative humidity range: 10% to 93% without condensation
- Operating voltage: 24 VDC (supplied by the hub or external power)
- Screen off: 117 mA
- Illuminated screen: 125 mA
Download To See All Specifications
Download- Remote control of ADR-7000, SAVER-7000 and GUARD-7 smart control panels
- LCD display, keyboard, internal buzzer and trouble alerts
- Connection via RS-485 twisted wire pair in Class B or Class A configuration
- Up to 16 remote panels (Saver-7000 and Guard-7 3 remote panels) with unique addresses for scalable solutions
- Fully supervised communication circuits for enhanced reliability
- Display system states (normal, alarms, and faults) and silence/reset alarms
- Password-protected keys enable secure control and operation
- Autonomous operation for each sub-panel, displaying relevant events
- Networked sub-panel displays events from connected and partner hubs
- Multiple voltage supply options, including the fire detection panel and local addressable auxiliary power
- EN-54
- UL-2900
