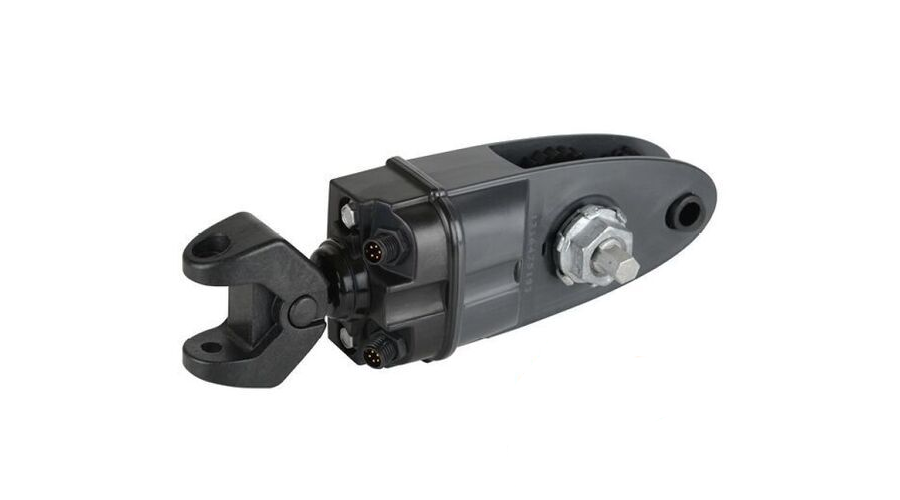

Z10 Tension Sensor - TVSIDG13115

The Z10 Tension Sensor measures the mechanical disturbance of a tensioned fence wire to reliably detect unauthorized access and raise an alarm when it is deflected during an attack. It continuously measures and reports wire tension and integrity in real time, identifying when maintenance is required or when the fence has been damaged.

• Continuous, real-time, wire tension measurement displayed in kg or lb.
• Able to detect both fast and slow attacks.
• Attack alarm based on single or multi sensors.
• Differentiation between environmental changes and attacks to minimize false alarms.
• Self aligning to optimize performance and to allow for variation in mounting angle.
• Compatible with energized and non-energized fences.
• 7kg to 60kg continuous operating tension range (15 to 130 lb).
• Overload protection to 200kg (440lb).
• High and low wire-tension maintenance alarms.
• Fast installation using new pivoting mount technology as well as plugged and IDC connectors.
• Options to retro-fit to existing Gallagher perimeter security systems.
• Fence and wiring design utility for accurate fence design.
• HBUS communication protocol, compatibility with high security.
• AES* 128bit encryption and latest Gallagher technologies.
• Fully integrated with Gallagher Command Centre v7.10 and later.
• Applications
• The Z10 Tension Sensor can be installed to provide fence wire disturbance detection for a wide range of applications.

Z10 Tension Sensor - TVSIDG13115

Z20 Disturbance Sensor IDG12917

The Z20 Disturbance Sensor provides discrete detection which heightens perimeter security through the intelligent detection of vibration or movement of the fence or other structures. Alarms are generated when the disturbance meets a predefined threshold, providing quick intrusion detection and response times without the intruder being aware. From multi-technology, responsive security solutions which are fully integrated with Gallagher Command Centre, to simple perimeter systems requiring an uncomplicated form of detection, the Z20 Disturbance Sensor provides a superior perimeter intrusion detection solution (PIDS).

Applications

The Z20 Disturbance Sensor can be installed to provide perimeter intrusion detection on structures and objects including:

• Fences
• Walls
• Cladding
• Safes
• Vaults
• Rooftops
• Ceilings

Z20 Disturbance Sensor IDG12917
