OUR PRODUCTS
BFV With ISI Marked
LIV-BFV-CI-SGI-003
LIV-BFV-CI-SGI-003

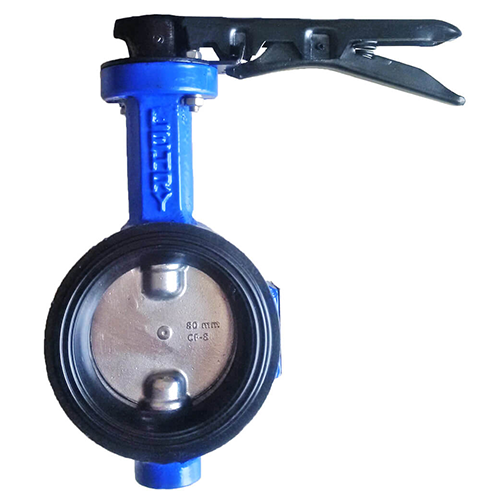

BUTTERFLY VALVE WITH ISI MARKED
LEHRY MAKE Butterfly valve, CI Body, SGI Iron Disc, PN - 16 with ISI Mark (IS 13095) , Extended stem with ISO Pad., Technical Spec : Body-C.I Is 210 Gr Fg 200, Disc- S.G.Iron, Seat: EPDM, Shaft-AISI 410., Manufacturing Std -BS 5155 with ISI Marked, INSP & TEST STD -BS 6755, Operation :Flow control Lever, End Connection : wafer type to suit ANSI B 16.5, Test Pressure: Body-24kg/cmsq, Seat -16 kg/cmsq.
LEHRY MAKE Butterfly valves are most suitable for wide range of industrial applications. These Valves can be integrated with a consistent range of actuators to create complet flow control packages. Versatile ranges of resilent seated quarter turn butterfly valves are available in various configuration and materials to match critical applications. Higher end quality inspection ensures 100% compliances of safety measures, specified pressure rating and each valve assures tigh shut-off.
DI/DI BV-PN16
LIV-BFV-DI-DI-003

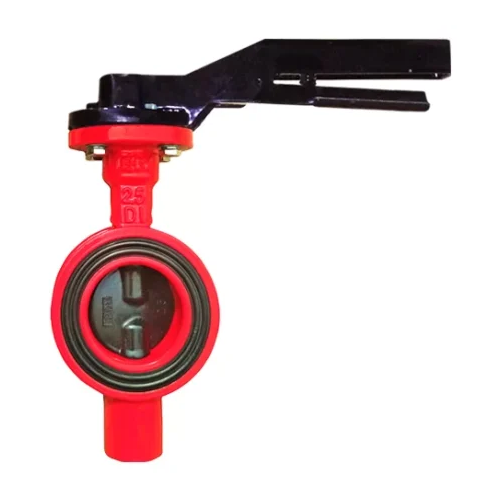

DI/DI BUTTERFLY VALVE – PN16
LEHRY BUTTERFLY VALVE DI BODY & DISC WAFER LUG TYPE - PN.16. Technical Details :- Body: DI (ASTM A 536),Disc: DI (ASTM A 536), Shaft : SS410, O-Ring : NBR, Seals: EPDM, Operation Flow Control Lever, Hyd - Test Press.: B.T.P : 21 Bar, : S.T.P : 16 Bar.
LEHRY MAKE Butterfly valves are most suitable for wide range of industrial applications. These Valves can be integrated with a consistent range of actuators to create complet flow control packages. Versatile ranges of resilent seated quarter turn butterfly valves are available in various configuration and materials to match critical applications. Higher end quality inspection ensures 100% compliances of safety measures, specified pressure rating and each valve assures tigh shut-off.
BUTTERFLY VALVE PN 40
LIV-BFV-WCB-013

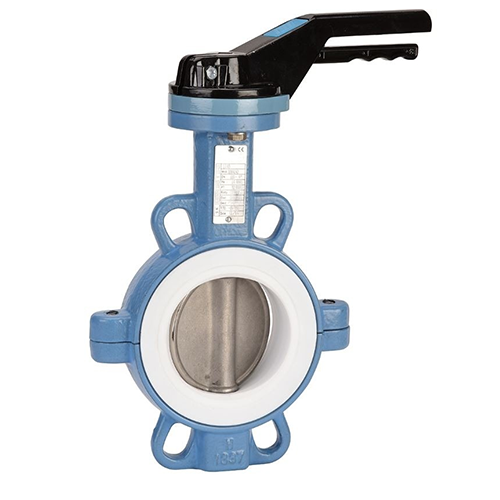

BUTTERFLY VALVE PN 40
LEHRY MAKE Spherical Disc Butterfly Valve Replaceable PTFE Seal Design, 150#, Handle Operated, Technical Details - BODY : WCB, DISC : CF8, SEALS : PTFE, Mfg. STD : API 609 Category B, INSP. & Test STD : API 598, Fire Safe Testing : API 607, Press. Rating : ANSI 150#, Oper. Temp.:(-)0 to 180°C, Leakage Class : VI, Media : Air, Water, Oil, Gas, Steam & Chemical & Vacuum, ENDS : WAFER Type to suit ANSI B16.5 (150#)., HYD - TEST PRESS.: BODY : 33 kg/cmsq, Seat- 22kg/cmsq.
LEHRY MAKE Butterfly valves are most suitable for wide range of industrial applications. These Valves can be integrated with a consistent range of actuators to create complet flow control packages. Versatile ranges of resilent seated quarter turn butterfly valves are available in various configuration and materials to match critical applications. Higher end quality inspection ensures 100% compliances of safety measures, specified pressure rating and each valve assures tigh shut-off.
BUTTERFLY VALVE PN 40
LIV-BFV-WCB-013

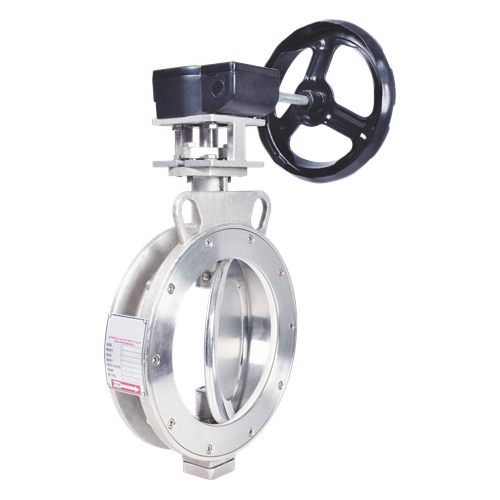

SPHERICAL DISC VALVE – HIGH PERFORMANCE BUTTERFLY VALVE – 300#
LEHRY MAKE Spherical Disc Butterfly Valve Replaceable PTFE Seal Design, Class - 150#, Handle Operated, Technical Details - BODY : CF8, DISC : CF8, SEALS : PTFE, Mfg. STD : API 609 Category B, INSP. & Test STD : API 598, Fire Safe Testing : API 607, Press. Rating : ANSI 150#, Oper. Temp.:(-)0 to 180°C, Leakage Class : VI, Media : Air, Water, Oil, Gas, Steam & Chemical & Vacuum, ENDS : WAFER Type to suit ANSI B16.5 (150#).
LEHRY MAKE Butterfly valve for flange mounting to pipelines; high Performance Spherical disc design. Suitable for use in cooling towers, wast-water applications, water treatment, water distribution, dams, gas main and service lines, pressure stations, gas storage tanks, power plants and gas pipelines industy.
DI BUTTERFLY VALVE - PN 40
LIV-BFV-DI-DI-040

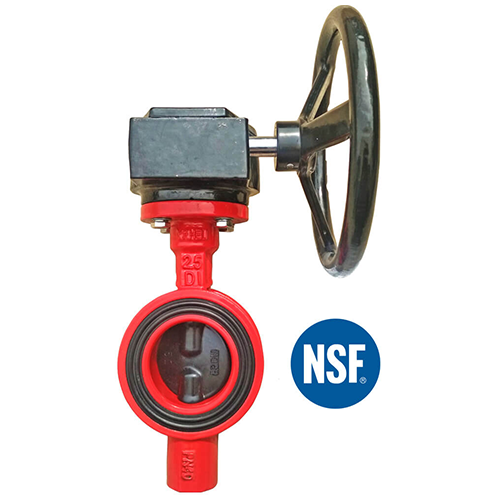

DI BUTTERFLY VALVE - PN 40
LEHRY BUTTERFLY VALVE DI BODY WITH DI+EPDM DISC WAFER TYPE - PN.40. Technical Details :- Body: DI (ASTM A 536),Disc: DI (ASTM A 536)+EPDM, Shaft : SS410, O-Ring : NBR, Seals: EPDM, Gear Operated, Hyd - Test Press.: B.T.P : 64 Bar, : S.T.P : 40 Bar.
LEHRY MAKE Butterfly valves are most suitable for wide range of industrial applications. These Valves can be integrated with a consistent range of actuators to create complet flow control packages. Versatile ranges of resilent seated quarter turn butterfly valves are available in various configuration and materials to match critical applications. Higher end quality inspection ensures 100% compliances of safety measures, specified pressure rating and each valve assures tigh shut-off
Pharma BV Handel / Gear Operated
LIV-BFV-CF8-CF8-022

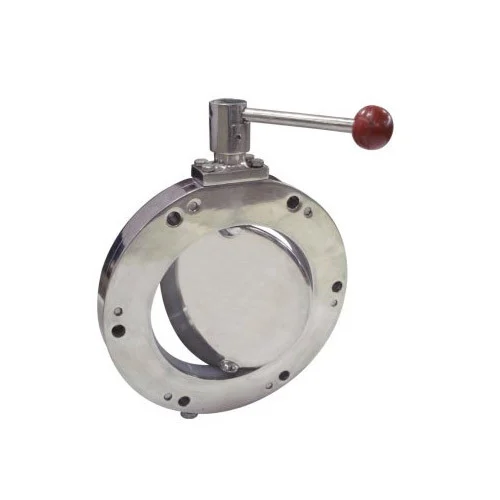

PHARMA BUTTERFLY VALVE HANDLE / GEAR OPERATED
LEHRY MAKE Handle Operated Pharma Butterfly Valve Wafer Type DESCRIPTION : - BODY : CF8, DISC : CF8 , Seat : Silicon, Leakage Class : Class IV to V, WORKING PRESS. : Max. 3 to 4 Kg/Cm², Temperature : Upto 150DegC.
LEHRY MAKE S.S. Disc / S.S. Body Pharma Butterfly Valve. These valves are truly Fit & Forged valve , Which requires minimum maintenance. The body lines which also function as the soft seat. comes in an integrally moulded version & offers bi - directional sealing against vacuum upto the pressure of PN 10 / PN 16.
SWITCH WAFER TYPE – 300 Psi
LIV-BFV-DI-DFM-001

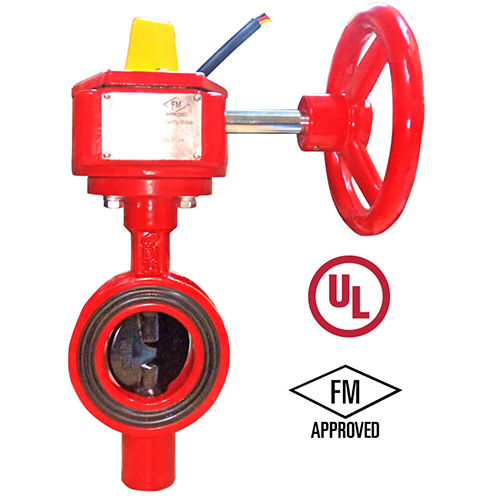

FM APPROVED - BUTTERFLY VALVE WITH TAMPER SWITCH WAFER TYPE – 300 Psi
LEHRY MAKE FM & UL Approved Wafer Type Butterfly Valve Gear Operated, Technical Details : - Body : Ductile Iron (ASTM A536), Disc : Ductile Iron + EPDM, Shaft Seal : EPDM, Stem Bushing : PTFE, Gear Box : DI, Epoxy Coated Colour : RAL3000, Ends. : Wafer Type, Working Pressure : 300 Psi , With Tamper Switch.
LEHRY FM Approved Wafer Type Butterfly Valves are made to the highest quality standards in the industrial applications. These Valves can be integrated with a consistent range to create complete flow control packages. Versatile ranges of resilient seated quarter turn butterfly valves are available in various configuration and materials to match critical applications. Higher end quality inspection ensures 100% compliances of safety measures, specified pressure rating and each valve assures tight shut-off.
SWITCH GROOVED TYPE – 300 Psi
LIV-BFV-DI-DFM-006

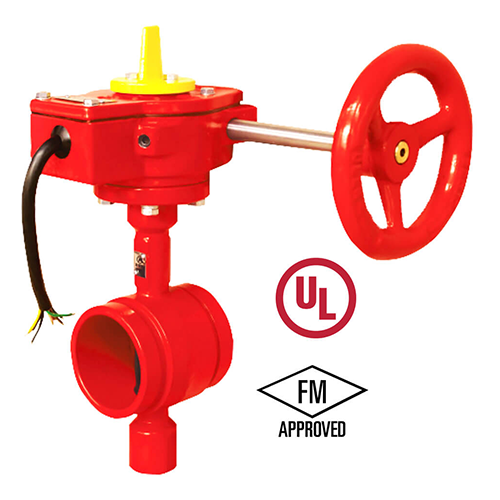

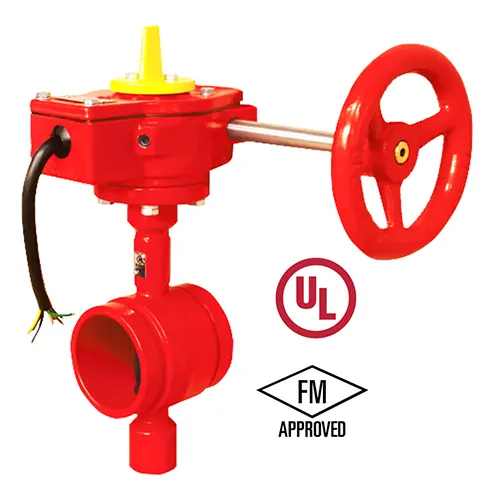

FM APPROVED - BUTTERFLY VALVE WITH TAMPER SWITCH GROOVED TYPE – 300 Psi
LEHRY MAKE FM Approved Grooved Type Butterfly Valve Gear Operated, Technical Details : - Body : Ductile Iron (ASTM A536), Disc : Ductile Iron + EPDM, Shaft Seal : EPDM, Stem Bushing : PTFE, Gear Box : DI, Epoxy Coated Colour : RAL3000, Ends. : Grooved Type, Working Pressure : 300 Psi, with Tamper Switch
LEHRY FM Approved Wafer Type Butterfly Valves are made to the highest quality standards in the industrial applications. These Valves can be integrated with a consistent range to create complete flow control packages. Versatile ranges of resilient seated quarter turn butterfly valves are available in various configuration and materials to match critical applications. Higher end quality inspection ensures 100% compliances of safety measures, specified pressure rating and each valve assures tight shut-off.
